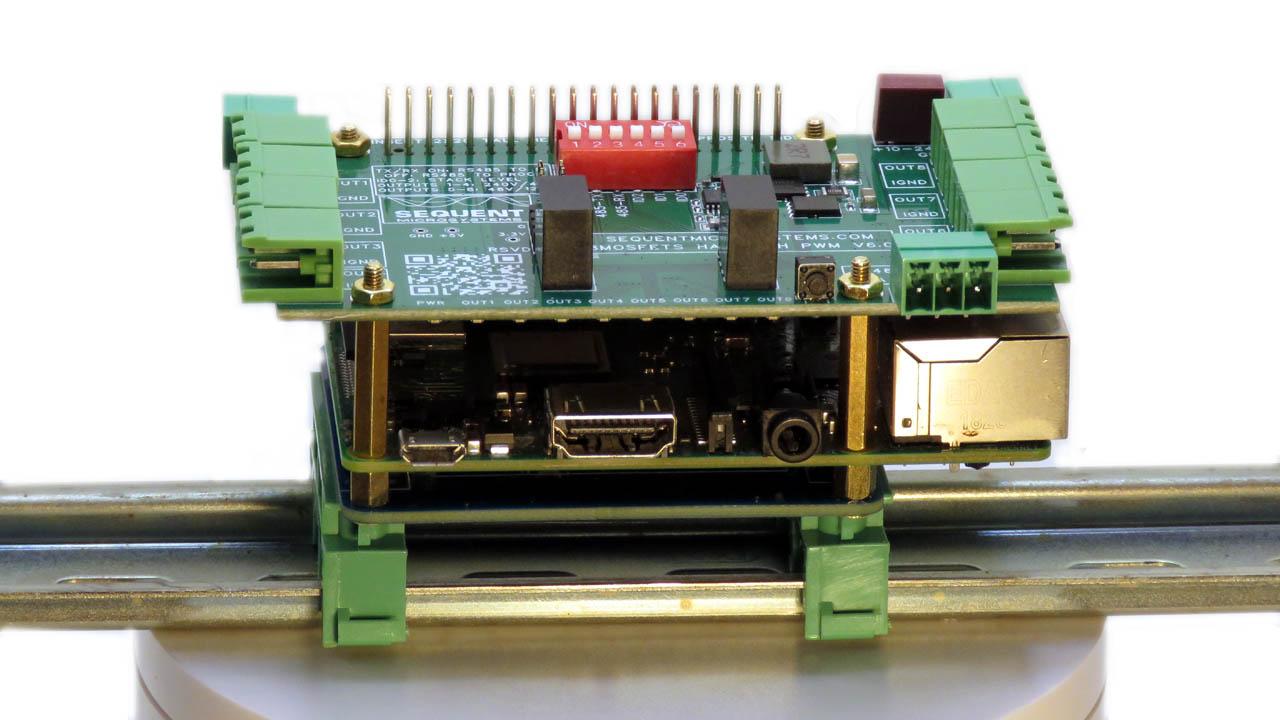

DIN-RAIL Kit Type1 Parallel Mount for Raspberry Pi
Install Raspberry Pi and multiple HATs parallel on the DIN-Rail; 90% rotation; Raspberry Pi 1 to 5.
In stock
Regular price
$10.00
FEATURES
- Installs Raspberry Pi parallel to DIN-Rail
- Works for all versions of Pi from 1 to 5
- Adapter plate pattern permits 90% rotation
-
All mounting hardware included
DESCRIPTION
The DIN-RAIL is a metal rail used for mounting industrial control equipment inside equipment racks. The DIN-RAIL can accommodate power supplies, relays, actuators and many other industrial equipment in a compact and robust form factor.

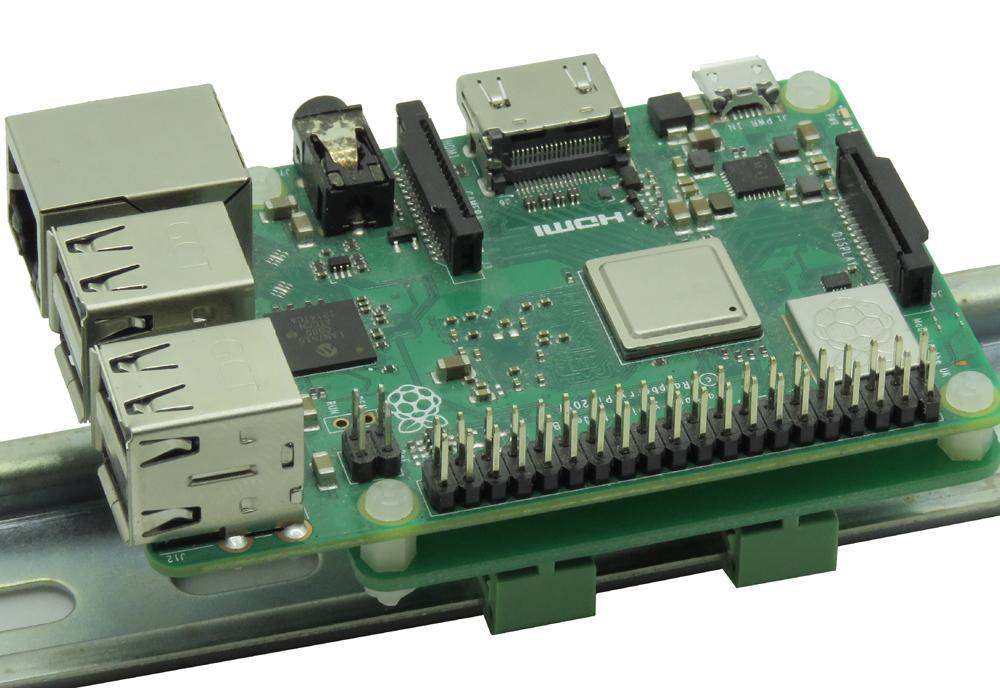

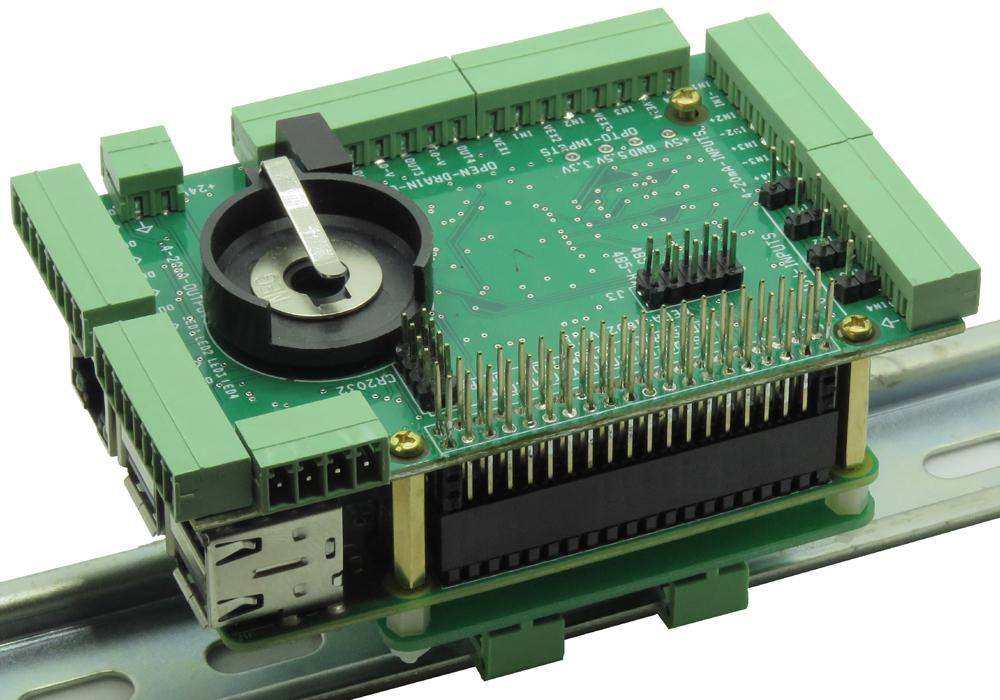

The DIN-RAIL Kit Parallel Mount permits installing all versions of Raspberry Pi, from Zero to 4, on a DIN-RAIL. The adaptor plate mounts parallel to the DIN-Rail using custom DIN-RAIL brackets that snap on the rail, and can accommodate one Raspberry Pi and any number of add-on cards.

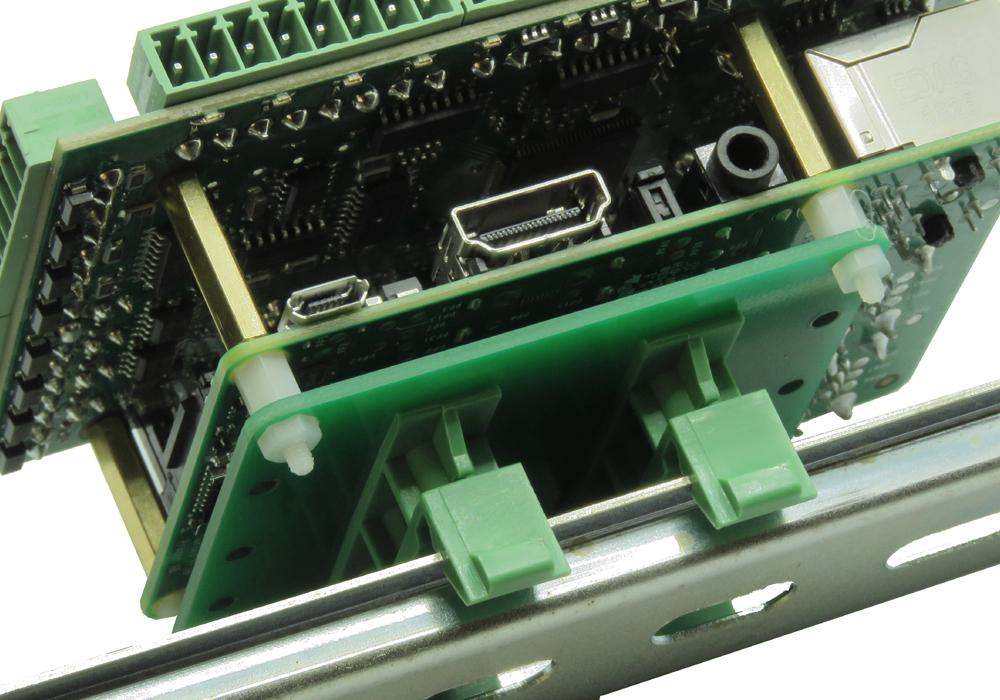

Installing the DIN-RAIL Kit is straight forward. Install the plastic brackets on the adapter plate using the 4 screws provided. Install the standoffs On the opposite side of the plastic brackets. Now you can install your Raspberry Pi on the standoffs and snap the adapter on the DIN-RAIL. To remove the adapter press gently on the side tabs of the plastic brackets and tilt the adapter out of the DIN-RAIL.
Raspberry Pi DIN-RAIL Kit Perpendicular Mount
For perpendicular to DIN-Rail installation see our DIN-Rail Kit Type 2 which offers mechanical stability to any number of cards stacked on top of Raspberry Pi.
DOWNLOADS
YOUR KIT

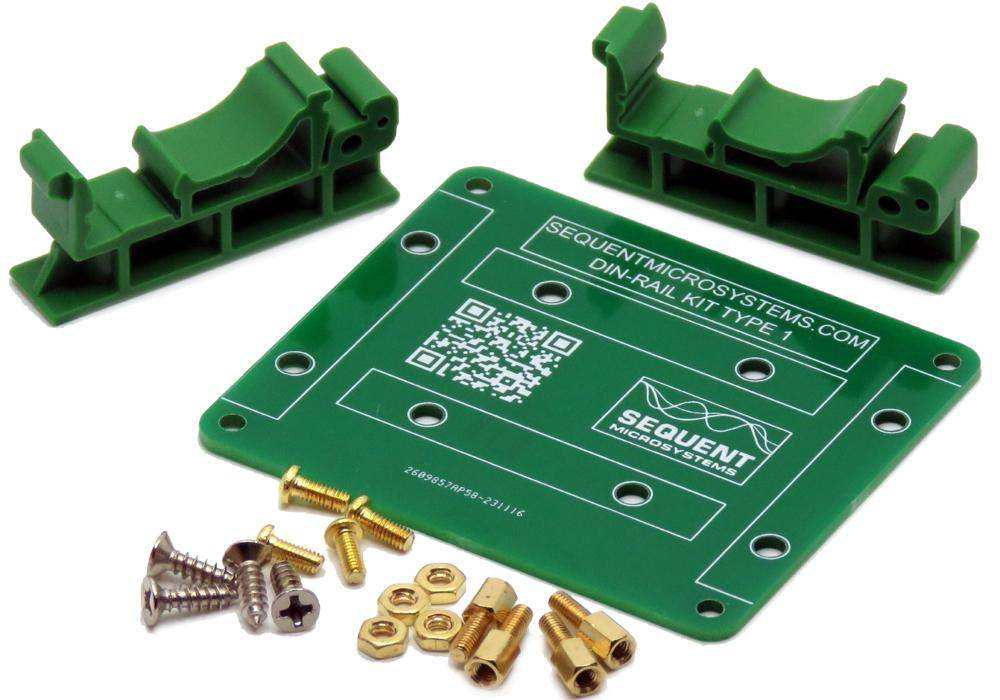

When you purchase the DIN-Rail Kit you will receive the following items:
1. Two Plastic DIN Rail Brackets with Screws

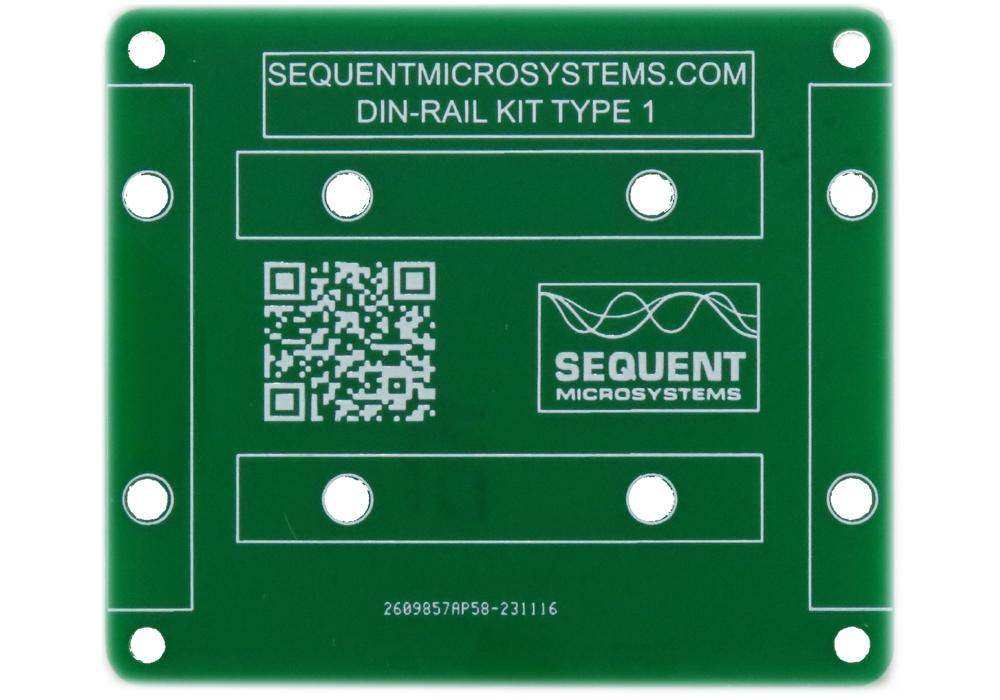

2. PCB Adapter Plate with standoffs, nuts and screws
