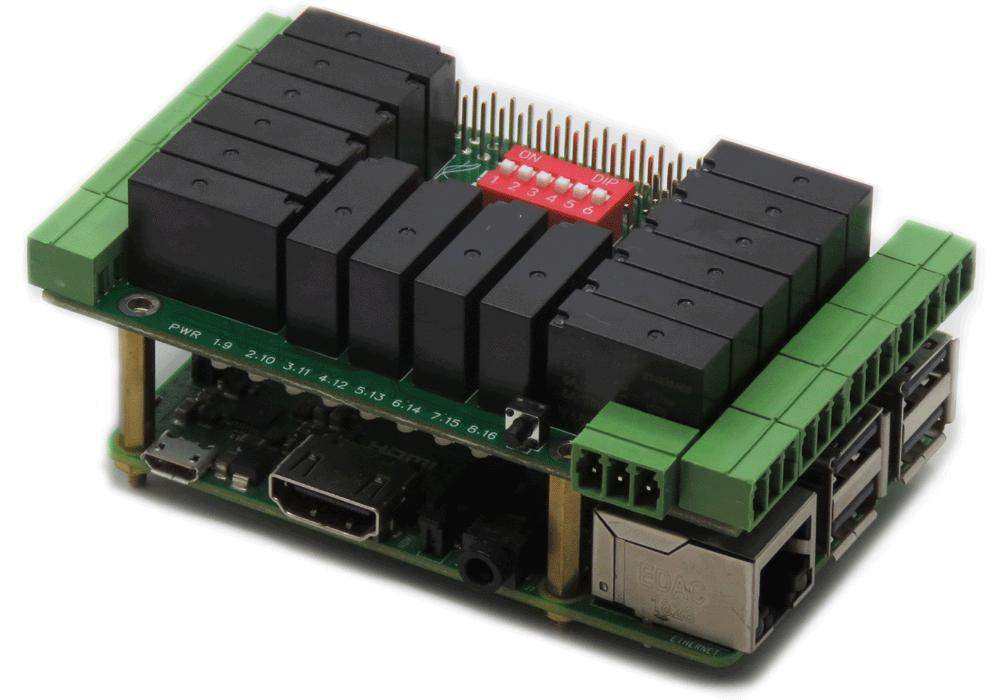

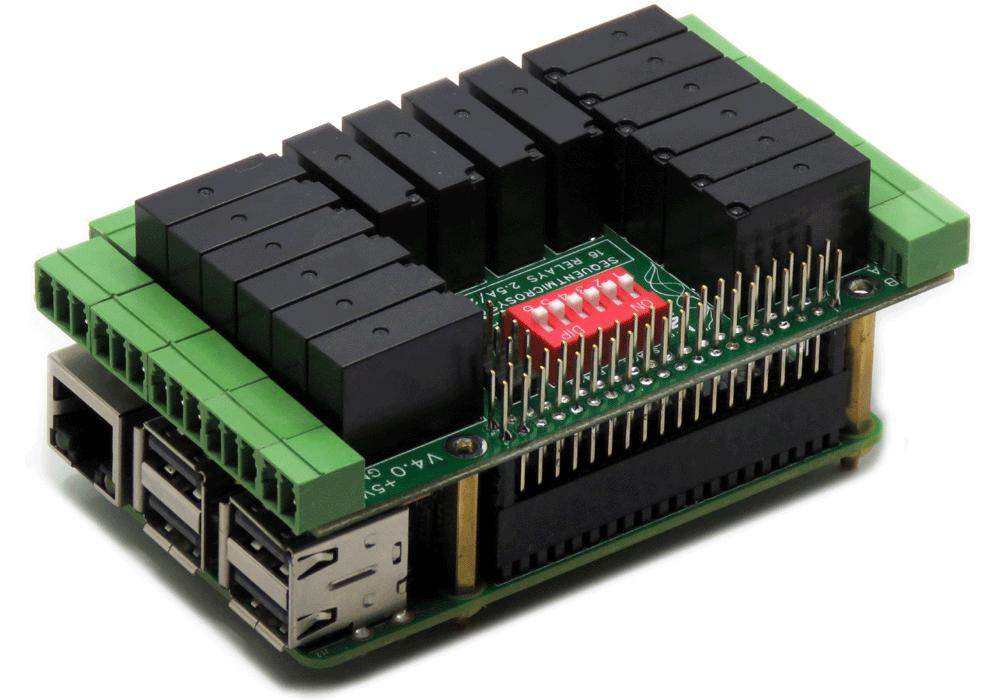

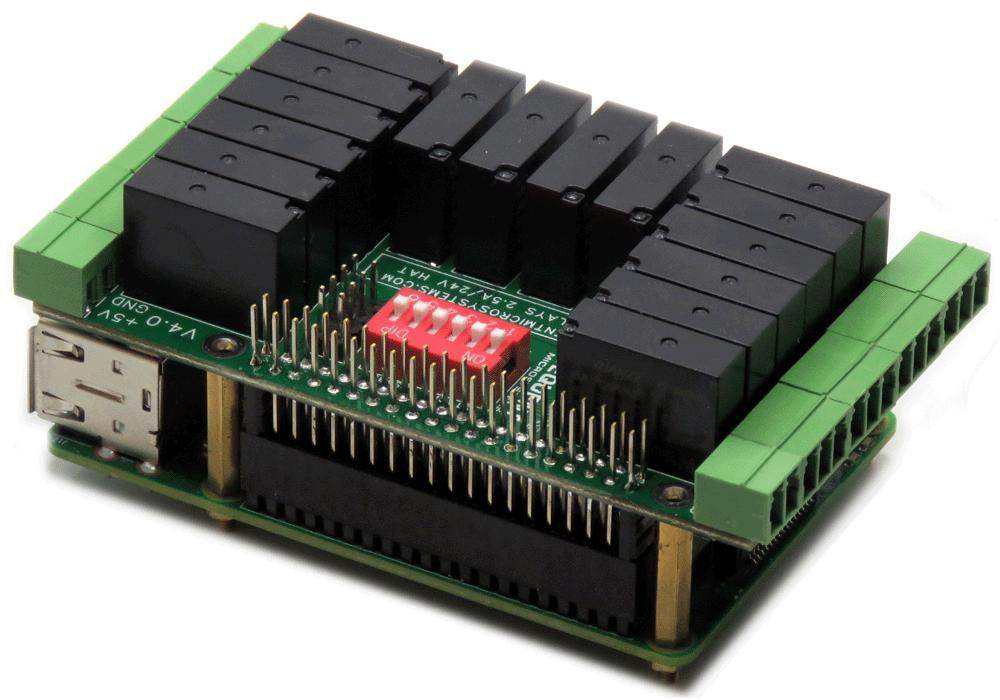

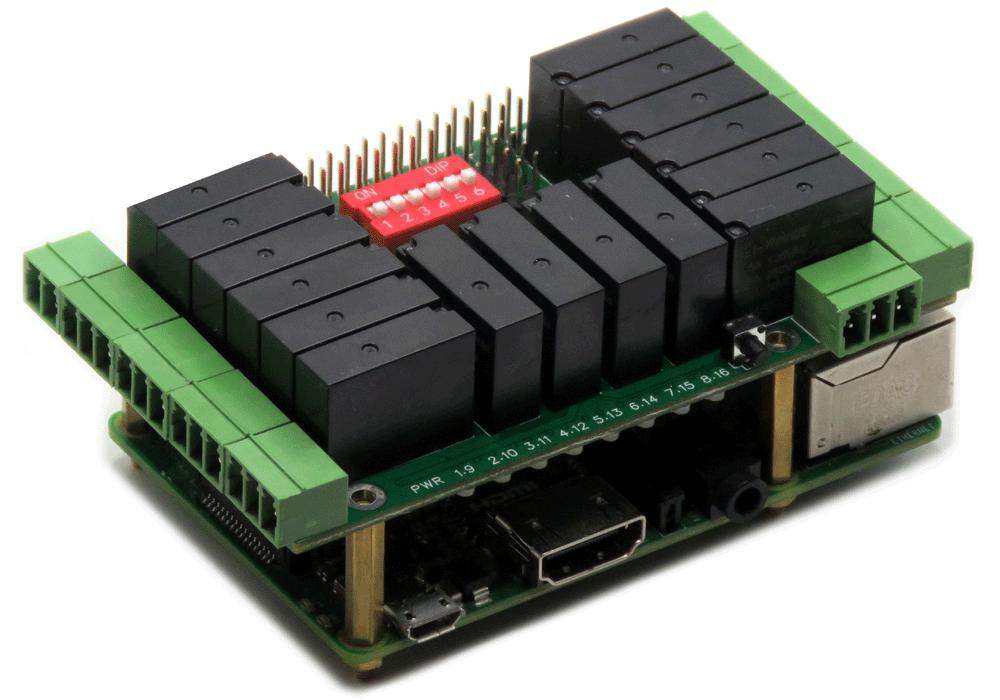

Sixteen Relays 2A 24V 8-layer stackable HAT for Raspberry Pi with DIP switches and pluggable connectors.

Sixteen Relays 2A/24V 8-layer stackable HAT module with status LEDs and DIP switch for Raspberry Pi control

Sixteen Relays 2A 24V 8-layer stackable HAT with status LEDs and pluggable connectors for Raspberry Pi.

Sixteen Relays 2A/24V 8-layer stackable HAT module for Raspberry Pi with status LEDs and pluggable connectors.

Sixteen Relays 2A 24V 8-layer stackable HAT circuit board for Raspberry Pi with labeled connectors and integrated components.

SKU: SM-I-013

Sixteen Relays 2A/24V 8-Layer Stackable HAT for Raspberry Pi

Name: Sixteen Relays 2A/24V 8-Layer Stackable HAT for Raspberry Pi
Brand: Sequent Microsystems
SKU: SM-I-013
Price: 80.0 USD
Availability: InStock

Sixteen relays with status LEDs and Normal Open contacts; RS485 and Hardware Watchdog.

In stock

$80.00

Product variants

Overview

Sixteen-relay HAT for Raspberry Pi with stackable design for high-density load control. Sixteen normally-open relay contacts, bicolor status LEDs, RS485/MODBUS interface, and a hardware watchdog in a compact, stackable platform for industrial and building automation applications.

Sixteen NO relay contacts rated 2A/24VAC/DC
Eight bicolor status LEDs show the on/off state of all 16 relays
Up to 8 cards stackable — 128 relays per Raspberry Pi
RS485/MODBUS port for direct PLC/SCADA integration
Hardware watchdog ensures continuous unattended operation
Uses only I2C — all 24 remaining GPIO pins stay free
Compatible with all Raspberry Pi versions from Zero to 5

Works with Open Automation Software

Compatible with widely used tools for control, monitoring, and system integration.

INTERFACES AND I/O

I/O's	Communication	Software Integration
• Sixteen Relay Outputs (NO contacts, 2A/24VAC/DC)	• I2C Port to Raspberry Pi	• Command Line
	• RS485/MODBUS Port	• Python Library
		• Node-RED nodes
		• CODESYS Driver
		• OpenPLC Module
		• Home Assistant
		• Arduino Library
Other Features
• Software relay self-test cycles all relays on and off at 0.5-second intervals
• Eight bicolor status LEDs show the on/off state of all 16 relays
• 5V onboard power supply also powers the Raspberry Pi
• General purpose reset pushbutton (GPIO 26)	• Pluggable Connectors 26–16 AWG wires
• On Board Hardware Watchdog and resettable fuse	• Eight Level Stackable

DESCRIPTION

The Sixteen Relays HAT provides a simple and scalable way to control large numbers of loads with Raspberry Pi. Stackable to 8 layers, a single Raspberry Pi can manage up to 128 relays in a compact, modular form factor.

Relay Outputs

Sixteen normally-open relay contacts rated 2A/24VAC/DC, connected via pluggable screw terminals. Electrical endurance: minimum 10⁵ cycles at full load; mechanical endurance: minimum 10⁷ cycles.

Status LEDs

Eight bicolor LEDs show the on/off state of all 16 relays — one color per relay per LED. A dedicated power LED confirms when the board is powered.

Hardware Watchdog

The hardware watchdog automatically power-cycles the Raspberry Pi if the software becomes unresponsive, ensuring continuous operation in unattended deployments.

RS485 / MODBUS

Onboard RS485 port configurable as a MODBUS RTU slave — accessible by any PLC or SCADA without a Raspberry Pi — or as a direct RS485 bridge for the Raspberry Pi, via DIP switch.

Reset Pushbutton

A momentary pushbutton at the board edge routes to GPIO 26. A user script monitoring this pin can issue a clean shutdown command, preventing SD card corruption from hard power cuts.

Relay Self-Test

A single command cycles each relay on and off at 0.5-second intervals. The relay clicking and LED activity confirm all 16 relays are functional before deployment.

Protection

An onboard 3A resettable fuse protects against accidental shorts on the power supply.

TECHNICAL DETAILS

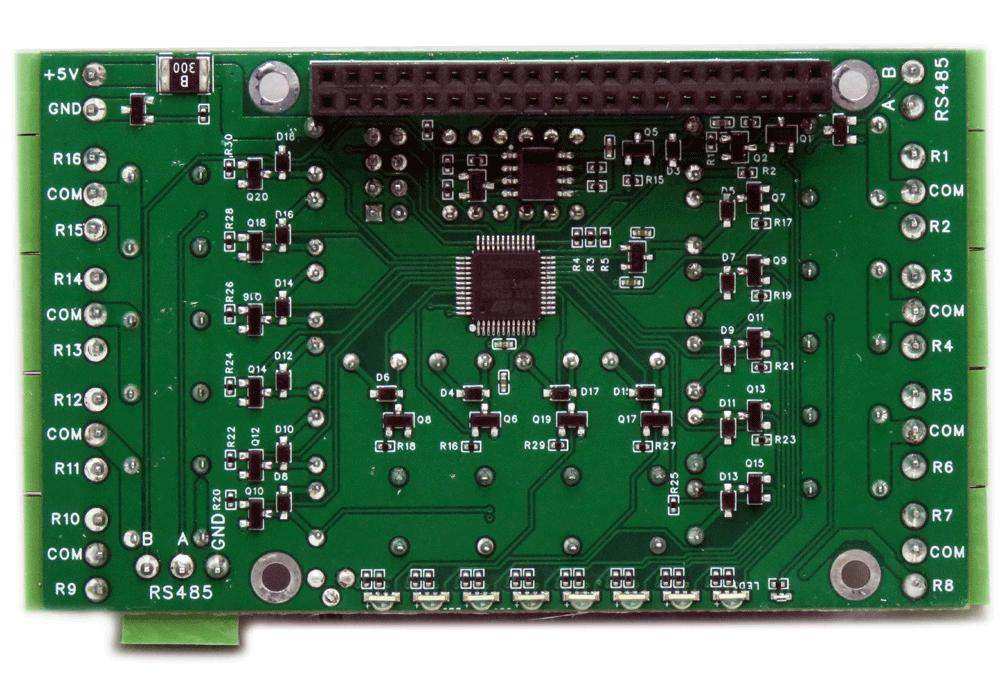

CARD LAYOUT

Sixteen Relays 2A/24V 8-Layer Stackable HAT for Raspberry Pi — board layout

MECHANICAL SPECIFICATIONS

Sixteen Relays Card Mechanical Specifications

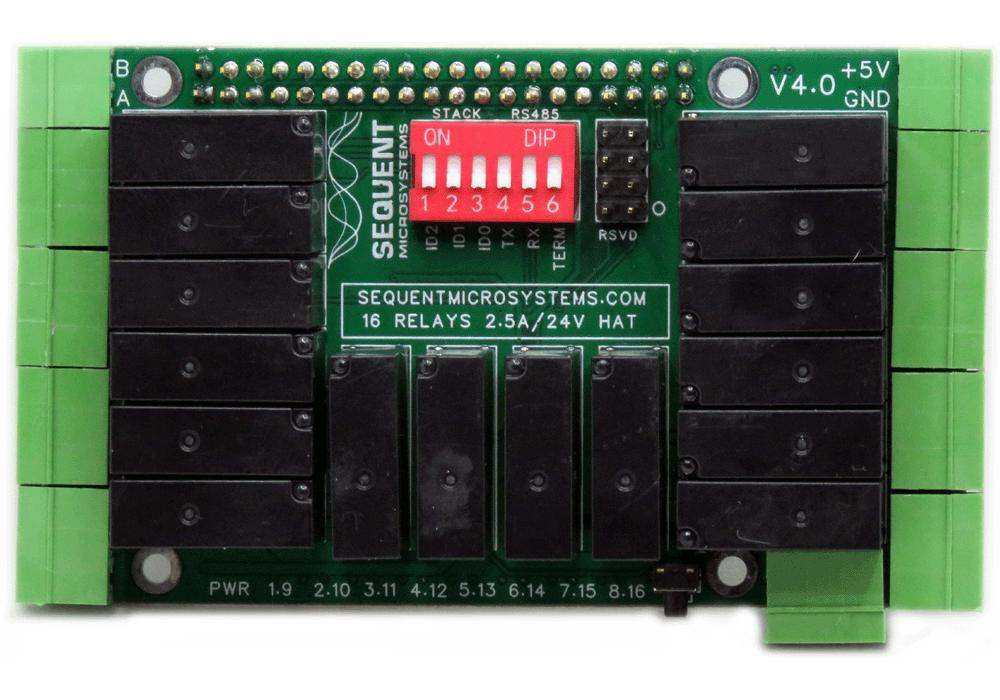

DIP SWITCH AND STACKING

The onboard six-position DIP switch configures both the stack address and the RS485 port behavior. Cards of different Sequent HAT types can be freely mixed in the same stack.

Switch	Name	Function
ID0	Stack ID bit 0	Binary stack address bit 0 (LSB) — sets card level 0–7
ID1	Stack ID bit 1	Binary stack address bit 1
ID2	Stack ID bit 2	Binary stack address bit 2 (MSB)
RX	RS485 RX select	ON: Raspberry Pi receives RS485 directly
TX	RS485 TX select	ON: Raspberry Pi drives RS485 directly
TERM	RS485 termination	Enable on the last card in an RS485 chain to prevent signal reflections

ELECTRICAL SPECIFICATIONS

Power
Power supply	5V/8A pluggable connector with reverse polarity protection
Power consumption (relays off)	10 mA
Power per relay (energized)	~80 mA
Onboard resettable fuse	3 A

Relay Outputs
Contact type	Normally Open (NO)
Contact rating	2A / 24VAC/DC
Electrical endurance	Min. 10⁵ cycles at 1,800 operations/hour, full load
Mechanical endurance	Min. 10⁷ cycles at 18,000 operations/hour, no load

POWER REQUIREMENTS

Power supply: The card requires 5V to operate and can be powered from the Raspberry Pi GPIO or from its own 2-pin pluggable connector. If power is applied to the board's connector, no separate Raspberry Pi power supply is needed. The board draws 10mA with all relays off; each relay coil requires approximately 80mA when energized.

PLUGGABLE CONNECTORS

All relay outputs connect via pluggable screw terminal connectors accepting wire gauges from 26 to 16 AWG. Connectors can be unplugged from the board for convenient field wiring and debugging without disturbing the rest of the installation.

COMMUNICATION INTERFACES

RS485 / MODBUS

The Sixteen Relays HAT includes a standard RS-485 transceiver that can be accessed either by the onboard processor or by the Raspberry Pi. The operating mode is configured using the TX and RX switches on the DIP switch.

When TX and RX are set to ON, the Raspberry Pi communicates directly with any device that has an RS-485 interface. In this mode the card functions as a passive bridge, implementing only the hardware signal levels required by the RS-485 protocol. To use this configuration, the onboard processor must first release control of the RS-485 bus:

~$ 16relind 0 rs485wr 0 0 0 0 0

When TX and RX are set to OFF, the card operates as a MODBUS RTU slave. Any MODBUS master — PLC, SCADA, or HMI — can read all inputs and control all outputs using standard MODBUS commands, with no Raspberry Pi required. A full list of supported MODBUS registers is available on GitHub.

In both modes, the onboard processor must be configured to either release or control the RS-485 signals accordingly. Refer to the command-line help for further details.

RESET PUSHBUTTON

Shutting down the Raspberry Pi by turning off the power can result in SD card failure. To prevent this, a shutdown command must be issued before cutting power — but that normally requires a monitor, keyboard, and mouse connected to the Pi.

A momentary pushbutton installed at the edge of the Sixteen Relays card provides a convenient way to shut down the Raspberry Pi. The button is routed to pin 37 (GPIO 26). Write a script that monitors this pin and, if held for more than a desired duration, issues the shutdown command.

HARDWARE WATCHDOG

The Sixteen Relays HAT includes a hardware watchdog that ensures your system automatically recovers if the Raspberry Pi software becomes unresponsive. The watchdog is disabled at power-up and activates after it receives the first reset command from the Raspberry Pi. The default running timeout is 120 seconds and the off period is 10 seconds; both are configurable from the command line.

Watchdog Parameters
Initial timeout period	Configurable — allows time for Raspberry Pi to boot and start the application
Running timeout period	Configurable — normal operating timeout (default: 120 seconds)
Off period	Configurable — duration the Raspberry Pi power is cut when timeout triggers (default: 10 seconds)
Reset counter	Stored in non-volatile flash; can be read or cleared at any time

For a full list of watchdog commands, run: 16relind -h

COMPATIBILITY

Interface	I2C
GPIO used	GPIO2 (SDA), GPIO3 (SCL) — 2 pins only; remaining 24 GPIO pins stay free
Max stack	8 cards of each type; different Sequent HATs can be freely mixed with virtually no upper limit on total I/O
Compatible with	All Raspberry Pi versions from Zero to 5 (40-pin GPIO header)

FIRMWARE UPDATE

The onboard microcontroller firmware can be updated in the field. The update tool downloads the latest firmware from Sequent Microsystems' servers and flashes it to the board over I2C.

WARNING: Stop all processes that access the card (Node-RED flows, Python scripts, cron jobs) before starting a firmware update. Accessing the card during an update may corrupt the firmware.

Running the Update

~$ cd ~/16relind-rpi/update/

~/16relind-rpi/update$ ./update <id>

Replace <id> with the board stack address (0-7). Full instructions including recovery procedures are available at:

https://github.com/SequentMicrosystems/16relind-rpi/tree/master/update/README.md

DOWNLOADS

User's Guide (PDF)	Schematics (PDF)	CAD	Software & Integrations
User's Guide V1.0	Hardware Schematic V2.0	3D Printing Enclosure	Command Line
	Hardware Schematic V4.1	2D CAD Drawing	Python Library
		V4.1 3D STEP Model	Node-RED nodes
			MODBUS interface
			CODESYS Library
			Home Assistant
			Arduino Library

COMPLIANCE

RoHS and REACH Compliance Declaration

WHAT'S INCLUDED

When you purchase the card you will receive the following items:

1. Sixteen Relays HAT for Raspberry Pi

2. Mounting Hardware
	Four M2.5×18mm male-female brass standoffs Four M2.5×5mm brass screws Four M2.5 brass nuts

3. Connector Plugs for all Relay Outputs
	Two 2-pin female mating connector plugs Nine 3-pin female mating connector plugs

QUICK START

Plug your card on top of your Raspberry Pi and power up the system.
Enable I2C communication on Raspberry Pi using raspi-config.
Install the software from GitHub:

~$ git clone https://github.com/SequentMicrosystems/16relind-rpi.git

~$ cd /home/pi/16relind-rpi

~/16relind-rpi$ sudo make install

~/16relind-rpi$ 16relind

The program will respond with a list of available commands. To read more about the CLI, please refer to the README file. If you would rather use a different platform, you can access the same functionality through dedicated, ready-to-use integrations in the Downloads tab above.
