SKU: SM-A-010

Beagle-Pi Raspberry Pi Emulator Using Beagle Bone Black

Replace Raspberry Pi with Beagle Bone: Map all GPIOs, I2C, SPI and UART ports; Runs Linux on internal Flash.

In stock
$20.00

FEATURES

  • Beagle-Pi Raspberry Pi Emulator Using Beagle Bone Black
  • Replace Raspberry Pi with Beagle Bone Black/Industrial Cards
  • Maps all Raspberry Pi GPIO pins to Beagle IO's
  • Maps I2C, SPI and UART to corresponding Beagle Bone ports
  • Brings out the Beagle Bone serial debug connector
  • Includes 30 pin FFC connector for external display
  • Runs all Raspberry Pi software: Command line, Python, Node-RED
  • No SD-CARD needed! Runs Linux on internal flash.
  • Beagle Raspberry Pi Emulator

    DESCRIPTION

    Raspberry Pi Emulator using Beagle Bone Black

    Beagle Bone cards are readily available, from $50 to $100. They have lots of GPIO pins, I2C, SPI and serial interfaces. The boards run Linux and Node-RED, and could run all Raspberry Pi software.

    The Beagle-Pi is a passive adapter which maps all the Raspberry Pi GPIO pins to corresponding pins on the Beagle Bone Black interface. The I2C, SPI and serial ports are mapped to the identical interfaces. The other I/O pins are mapped 1 to 1. PWM pins on the GPIO connector are connected to PWM capable pins on the Beagle Bone.

    LAYOUT

    RaspberryPi Replacement using BeagleBone Black

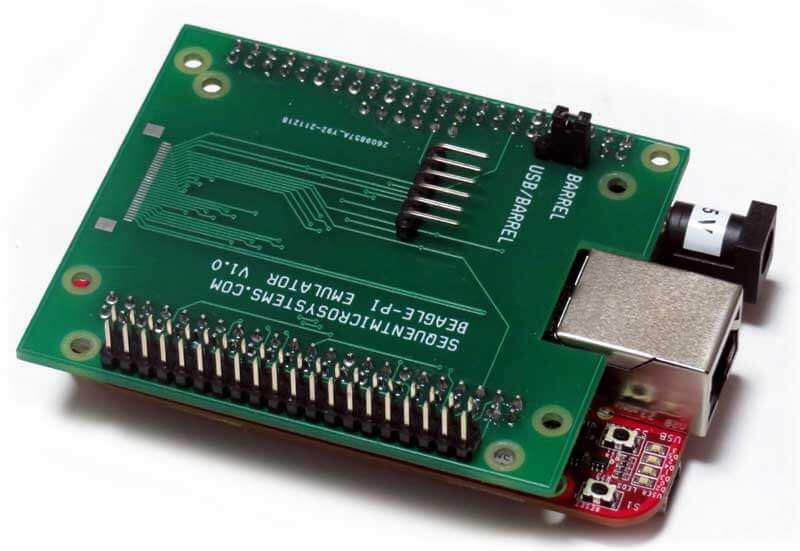

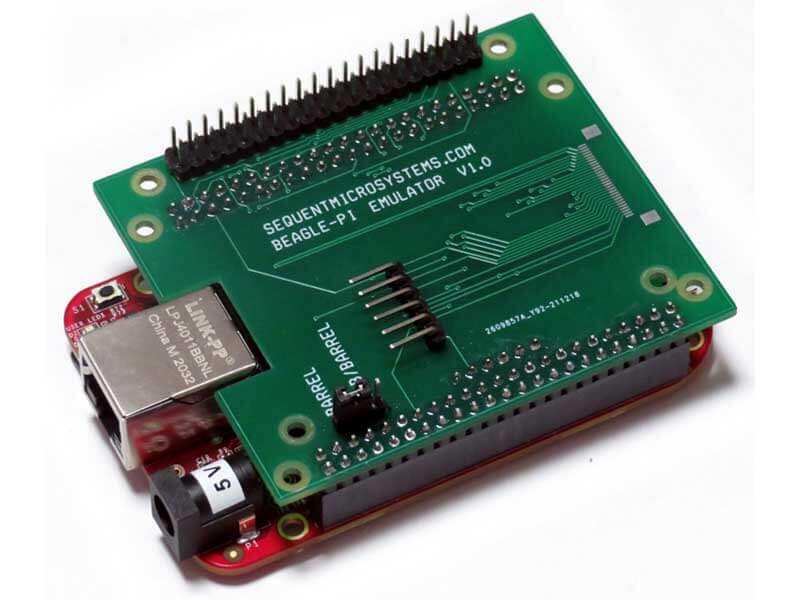

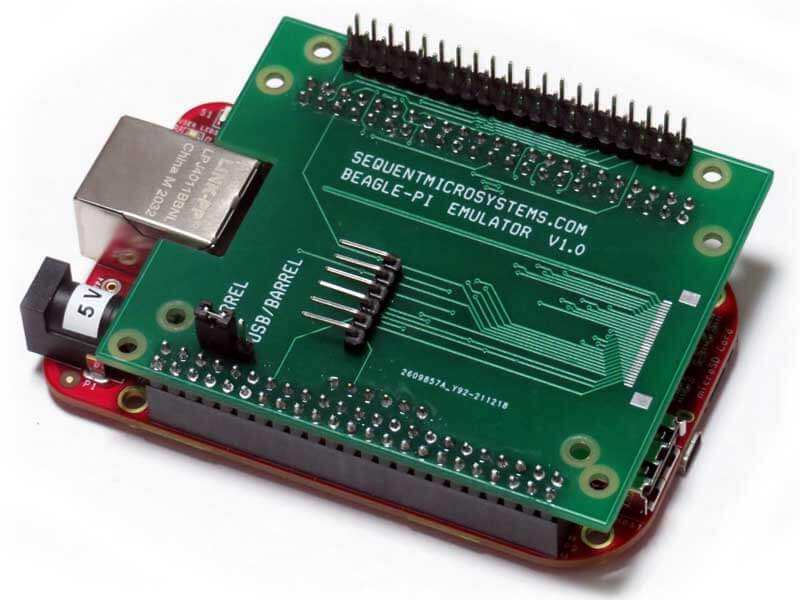

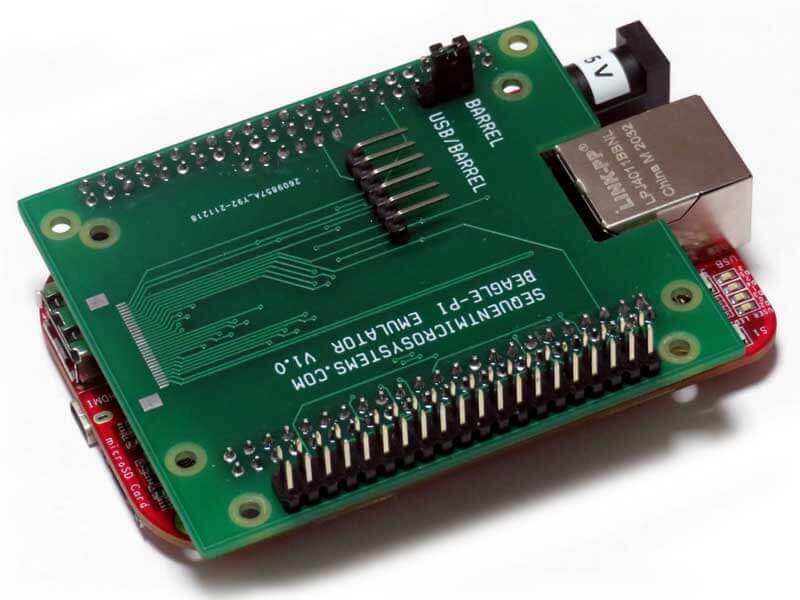

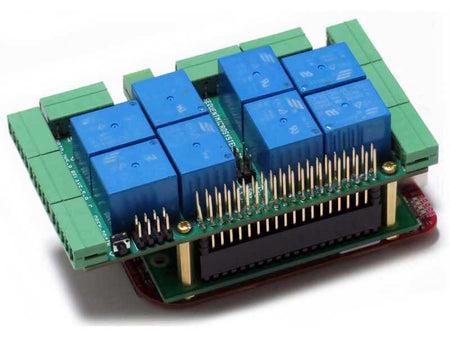

    The Beagle-Pi board plugs into the Beagle Bone Black board using P8 and P9 connectors, and emulates the Raspberry Pi GPIO connector J1. Any IO board designed for Raspberry Pi can be plugged into the Beagle Pi adapter. The adapter mounts on the Beagle Bone card using the four outside holes. Raspberry Pi HATs can be plugged into the J1 connector and secured using the four inside holes.

    Connector J5 selects the source of power for the BeagleBone, from the barrel or the USB connector.

    Connector J3 brings out the serial debug port, and J2 brings out the display port of the BeagleBone.

    GPIO MAP

    The tables bellow shows the correspondence between the Raspberry Pi GPIO pins and the Beagle Bone pins.


    Beagle-Pi GPIO Mapping



    DOWNLOADS

    Open Source Hardware Schematic V2

    Open Source Hardware Schematic V3

    2D CAD drawing

    SOFTWARE

    All the Sequent Microsystems drivers have been compiled for Beagle Bone and can be downloaded from GitHub. GPIO pin mapping commands will be available soon.

    To temporarily enable the I2C on Beagle Bone, open a terminal and type the following commands:

    config-pin P9.17 i2c
    config-pin P9.18 i2c

    Depending on your OS, you might have to use the commands:

    config-pin p9-17 i2c
    config-pin p9-18 i2c

    To enable the I2C permanently at startup, edit the file /etc/rc.local and add the same two lines. All the command "exit 0" on the last line.
    To use the Node-RED, which comes preinstalled on the Beagle, add the Node-RED to the I2C group with the command:

    sudo usermod -a -G i2c node-red

    The Raspberry Pi serial port on GPIO pins 8 and 10 is mapped to the Beagle UART4, which can be enabled by adding the following lines to the "etc/rc.local" file:

    config-pin p9.11 uart
    config-pin p9.13 uart

    Restart the Beagle after changing the "etc/rc.local" file.

    To check the available serial ports type the command:

    dmesg | grep tty


     YOUR KIT

    When you purchase the Beagle Pi Raspberry Emulator you will receive the following items:

    1. Beagle-Pi Board

    Beagle-Pi: Raspberry Pi Emulator
    2. Mounting Hardware

    Beagle-Pi mounting hardware


    APPLICATIONS


     Sample applications coming soon. Cards are in production right now.

    NEWS

    Beagle-Pi Emulator is a Raspberry Pi HAT adapter for BeagleBone Black



    Related products

    Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    F
    Francois
    Works as described

    In a world where nothing really works as the marketing departments describe, what a surprise. Plug it in, that's it. Only one advice I did not follow, for I2C a simple command to make it work.

    G
    Greg
    Careful of 3.3v versus 5 volt systems

    I’ve successfully used three of the Beagle-Pi emulators. They work well. But I have two suggestions:
    1. For added insurance, I put a 3-to-5 volt level converter between the 3.3V BBB and the 5 volt devices. Arduinos and I2C LCD modules are 5 volt based. Some of the Sequent Microsystems boards are 5 volt based so you need to be careful not to fry the BBB. It would be nice if this level conversion circuit was designed into the Beagle-Pi board. https://learn.sparkfun.com/tutorials/bi-directional-logic-level-converter-hookup-guide/all https://www.adafruit.com/product/757

    2. Version 2 schematics are available on the Sequent Microsystems site. However, the boards I received are version 3.0.
