Breakout Card Screw Mount Type1 26-18 AWG for Raspberry Pi
Routes all 40 GPIO pins to screw terminal blocks; 24 - 18 AWG wiring; Works with Raspberry Pi ZERO through 5.
Overview

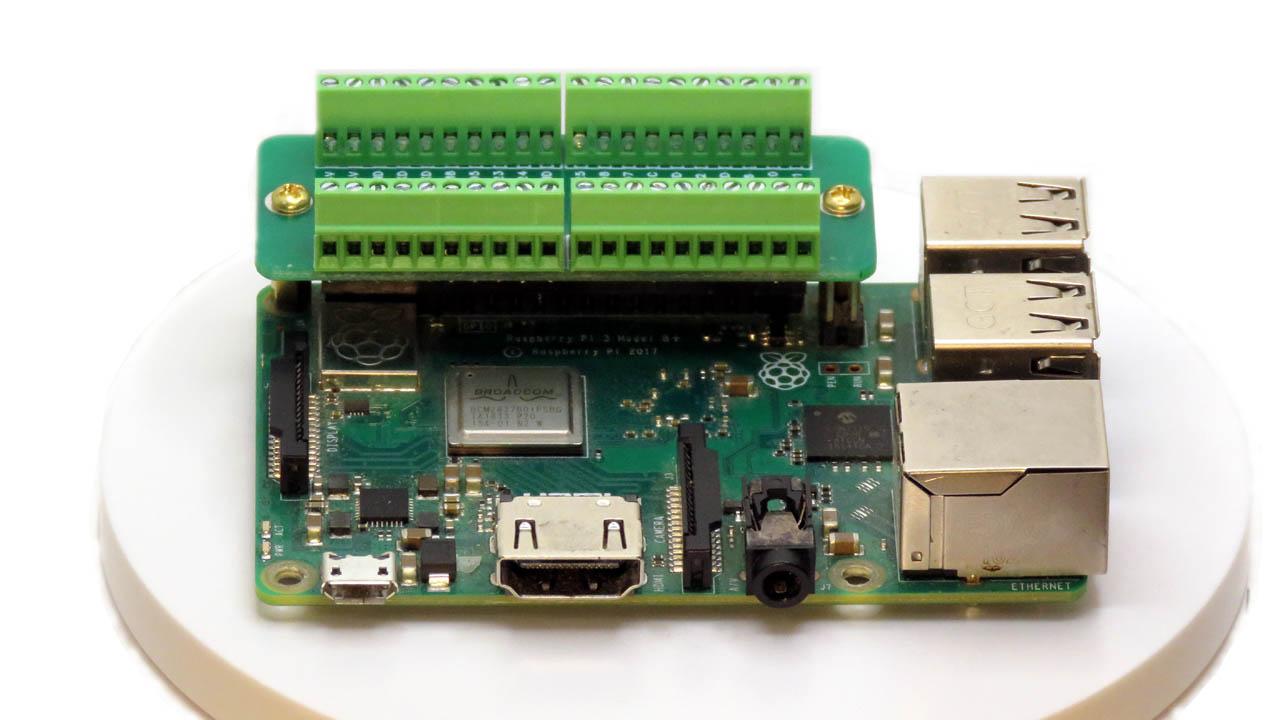

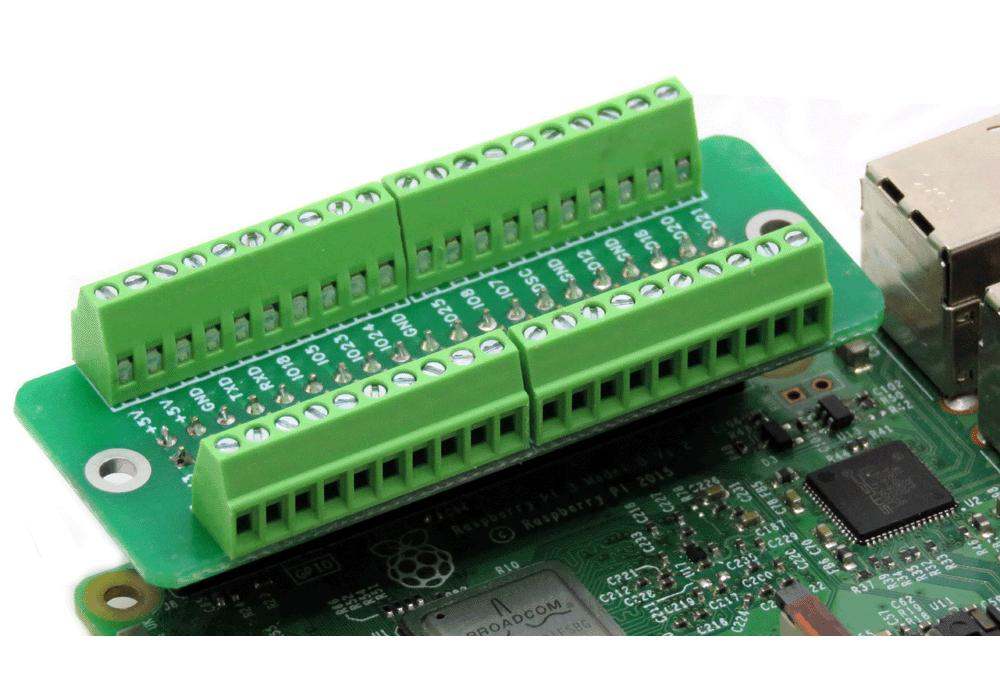

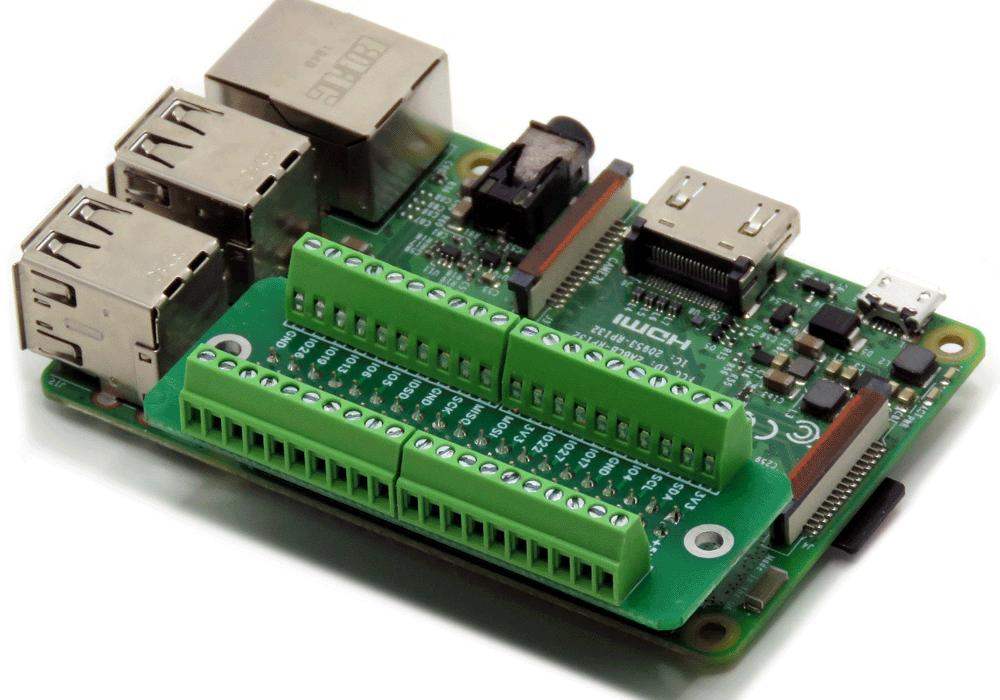

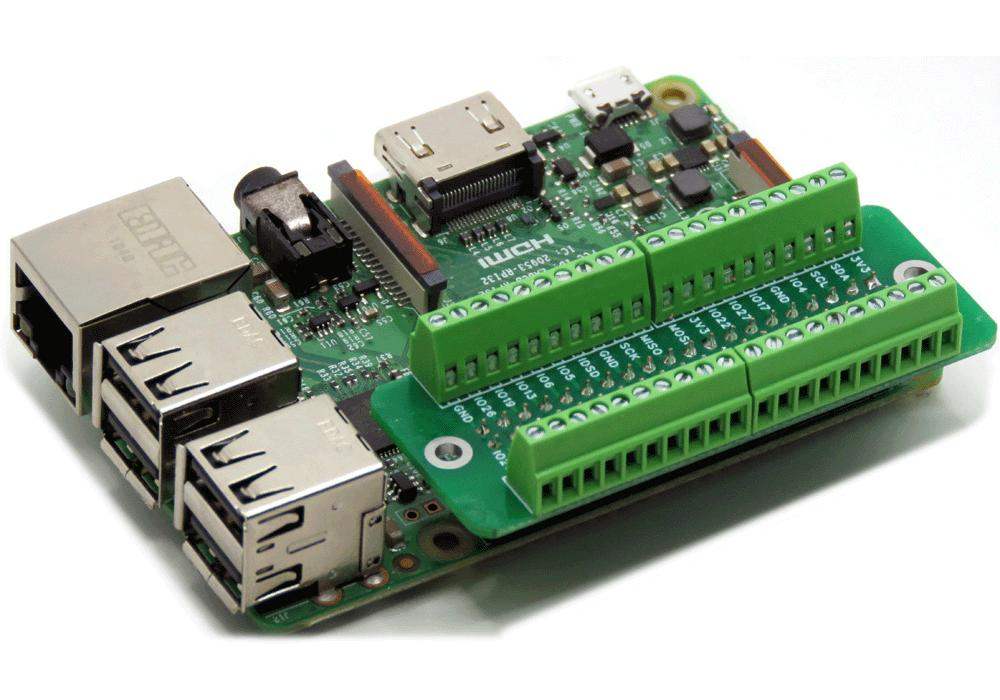

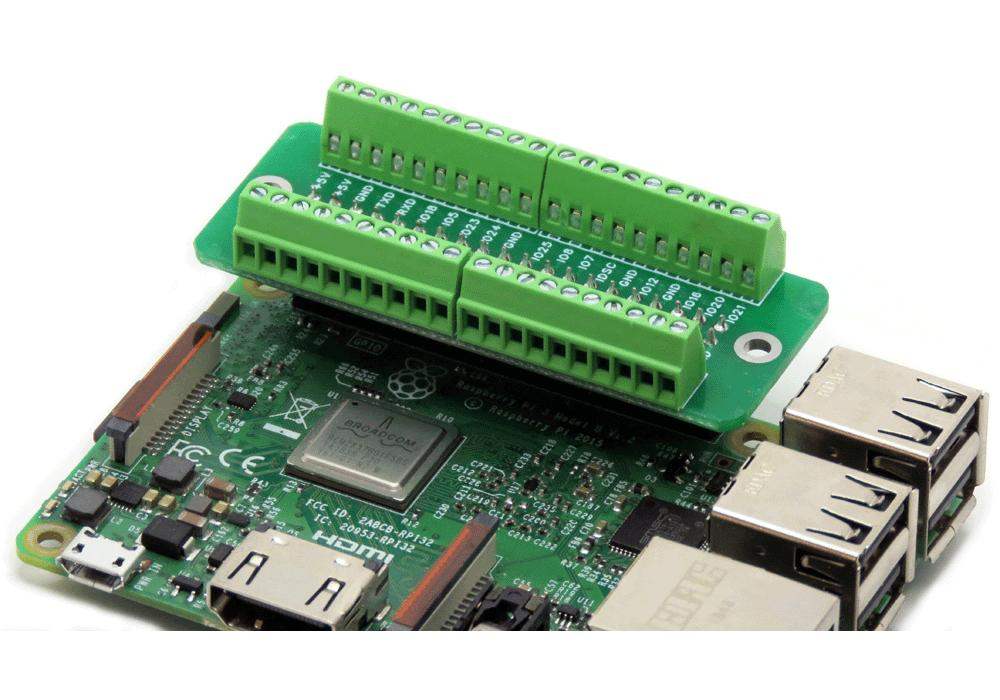

The Breakout Card Screw Mount Type 1 plugs into a Raspberry Pi or into any stackable expansion card, bringing all 40 GPIO pins out to screw-mount terminal blocks for convenient, secure field wiring.
- Routes all 40 I/O and power pins to screw terminal blocks
- Permits easy and secure field installation
- 2.54mm pitch PCB screw terminal block connectors
- Rated 6A / 150V, accepts 26–18 AWG wire
INTERFACES AND I/O
| I/O's | Communication | Software Integration |
|---|---|---|
| • All 40 Raspberry Pi GPIO pins (power and signal) broken out to screw terminals | ||
| Other Features | ||
| • 2.54mm pitch PCB screw terminal block connectors | ||
| • Rated 6A / 150V | ||
| • Accepts 26–18 AWG wire | ||
DESCRIPTION
The Breakout Card Screw Mount Type 1 can be plugged into a Raspberry Pi or into any stackable expansion card. It brings all 40 GPIO pins out to screw-mount terminal blocks for conveniently wiring your project. The terminal blocks accept 26 to 18 AWG wires and are rated 6A/150V.
TECHNICAL DETAILS
CARD LAYOUT

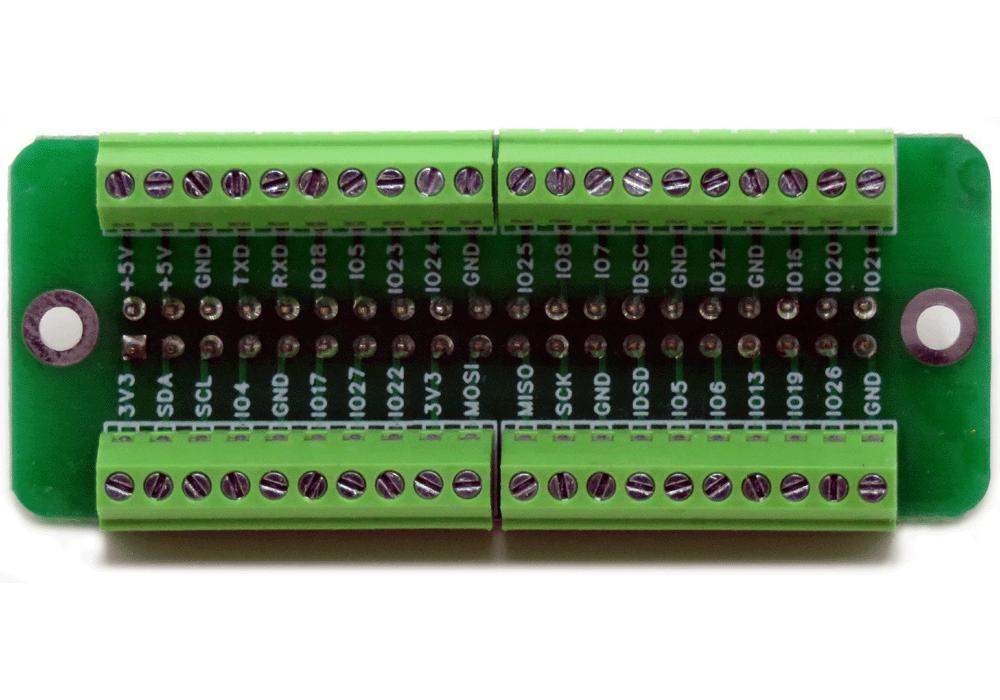

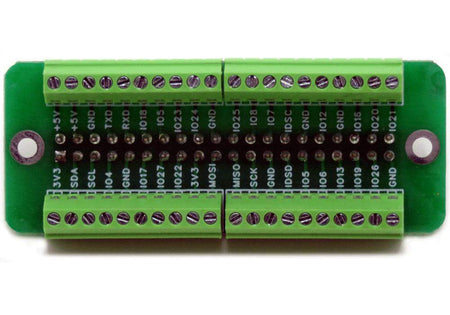

The Breakout Card Screw Mount Type 1 measures only 65mm x 25mm (2.55" x 1").
ELECTRICAL SPECIFICATIONS
| Terminal Blocks | |
|---|---|
| Connector pitch | 2.54 mm |
| Rated voltage | 150 V |
| Rated current | 6 A |
| Wire range | 26–18 AWG |
DOWNLOADS
No documentation is currently available for this card.
WHAT'S INCLUDED
When you purchase the card you will receive the following items:
| 1. Breakout Card Screw Mount Type 1 for Raspberry Pi |
|---|
|
QUICK START
- Plug the card onto the Raspberry Pi 40-pin GPIO header, or onto a stacked expansion card.
- Wire your I/O to the screw terminal blocks (26–18 AWG wire).
