SKU: SM-A-002

Breakout Card Type2 Spring Loaded 22-18 AWG for Raspberry Pi

Brings all 40 Raspberry Pi GPIO pins to spring-loaded connectors. Prototype area.

In stock
$15.00

FEATURES

  • 3.5mm Pitch PCB Spring-loaded Terminal Block Connectors
  • 3D STEP model available
  • Stainless steel wire guard
  • Phosphor bronze, tin plated pin header
  • Rated Voltage: 300V
  • Rated Current: 5A
  • Contact Resistance: 20 mOhms
  • Insulation Resistance: 5000 MOhms/DC 1000V
  • Wire Range: 22-18 AWG
  • Strip Length: 8-9 mm
  • Breakout Card Raspberry Pi

DESCRIPTION

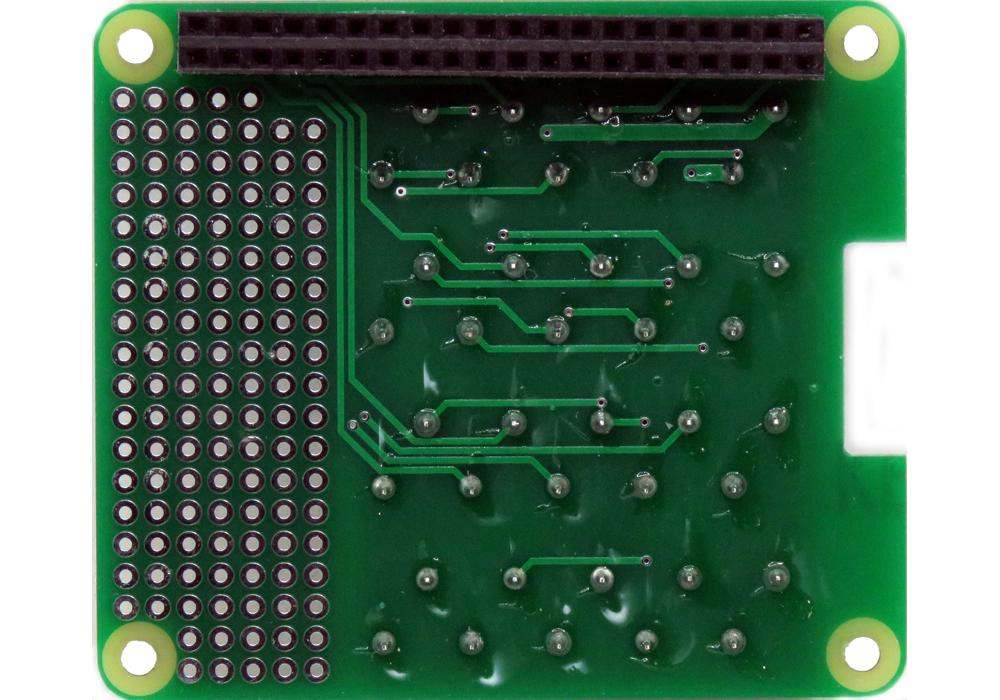

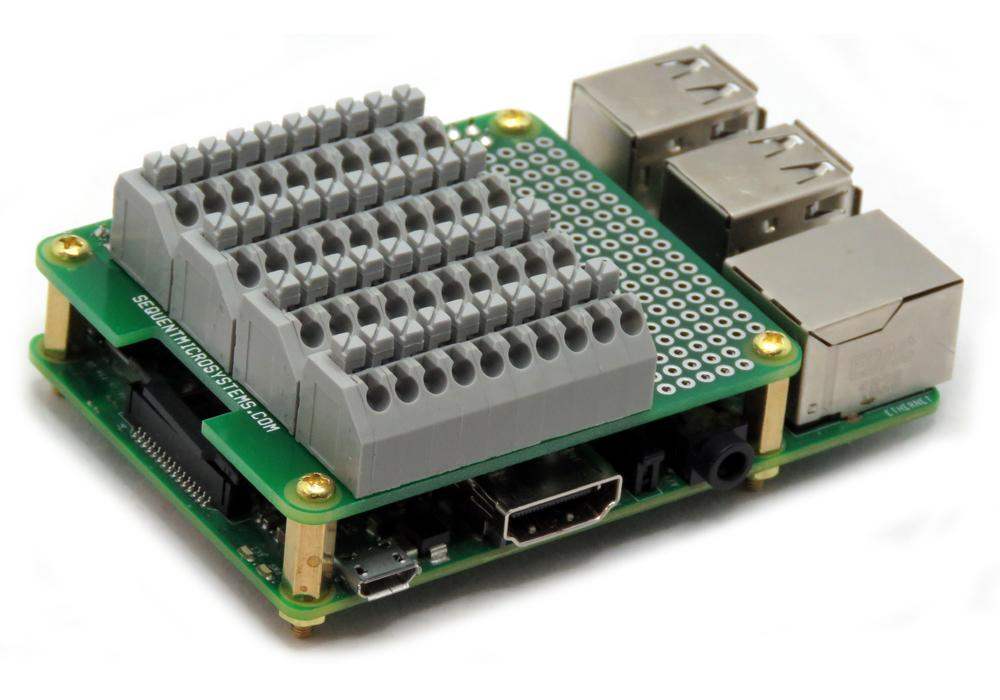

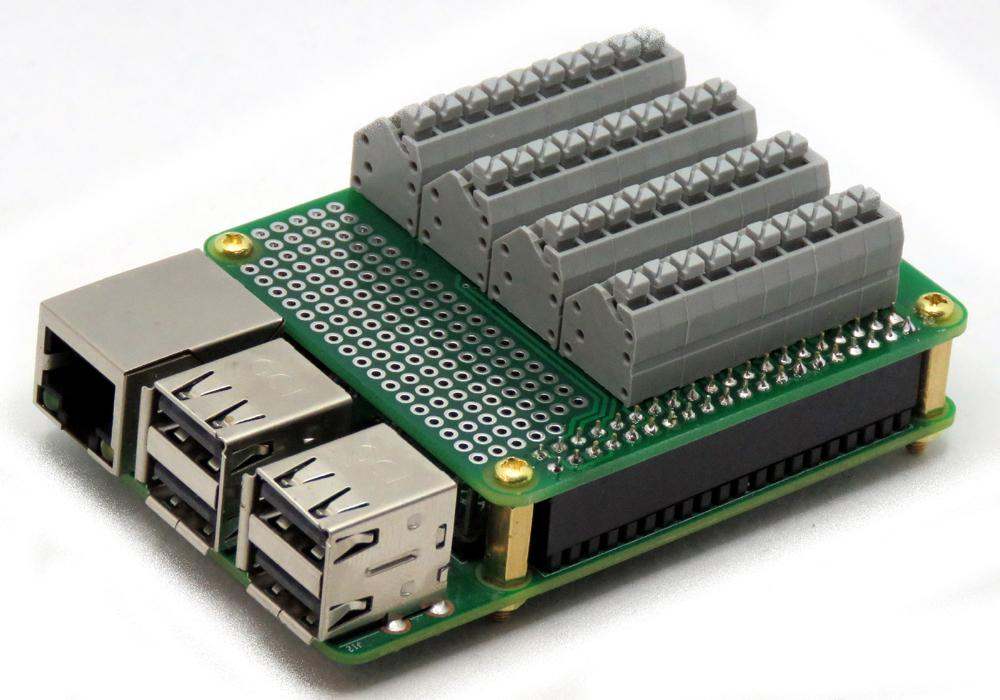

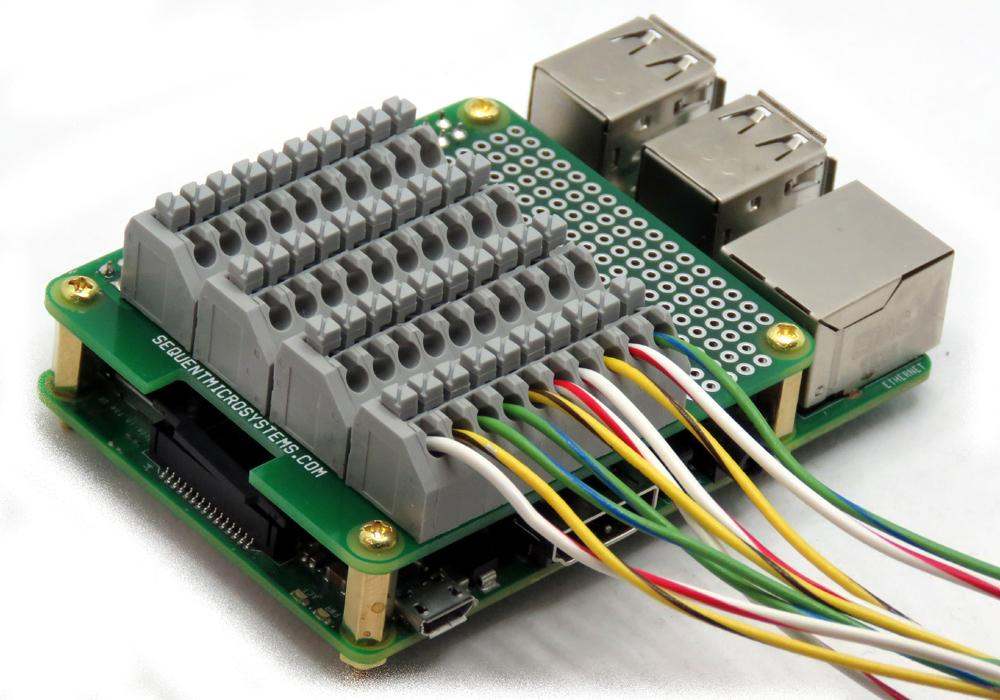

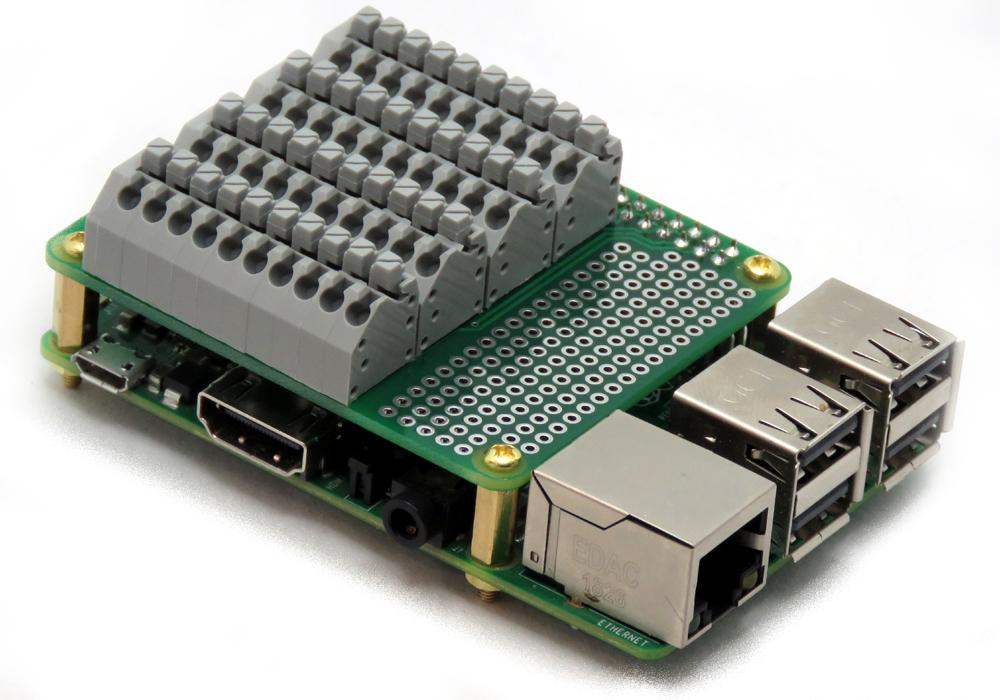

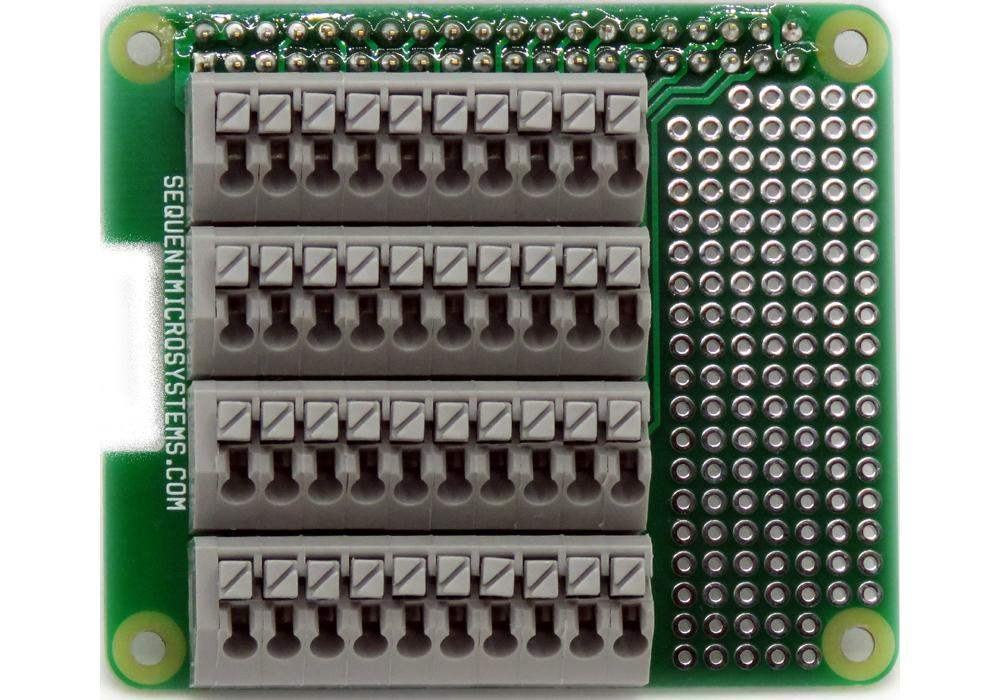

This card plugs into the Raspberry Pi 40 pin socket and brings all the GPIO pins to spring-loaded terminal blocks,  allowing rapid connection to GPIO pins.  The large prototype area of 7 x 19 holes can be used to test your own hardware. Raspberry Pi GPIO pins are brought out grouped by functions and color coded.


WHAT'S IN YOUR KIT

1. Spring Loaded Breakout Card for Raspberry Pi

2. Brass standoffs, nuts and screws

Breakout Card for Raspberry Pi


 3D STEP Model

Schematic


OTHER BREAKOUT CARDS

We have three breakout cards for Raspberry Pi, to satisfy all your prototyping needs. All cards plug into the Raspberry Pi 40 pin GPIO connector and bring the IO's to different terminal blocks.

Breakout Card Type 1

The card has a large prototype area of 5 x 40 holes at 0.1" spacing which can be used to test your own hardware. The terminal blocks accept 26 to 18 AWG wires and are rated 6A/150V.

Breakout Card Kit Pluggable

This card connects the GPIO pins to heavy-duty pluggable terminal blocks.  It can use used both for Raspberry Pi and for the Home Automation Cards. The 2×20 pin header can be plugged into Raspberry Pi or into any stackable expansion card or HAT. The terminal blocks accept 24 to 14 AWG wires and are rated 8A/300V.
