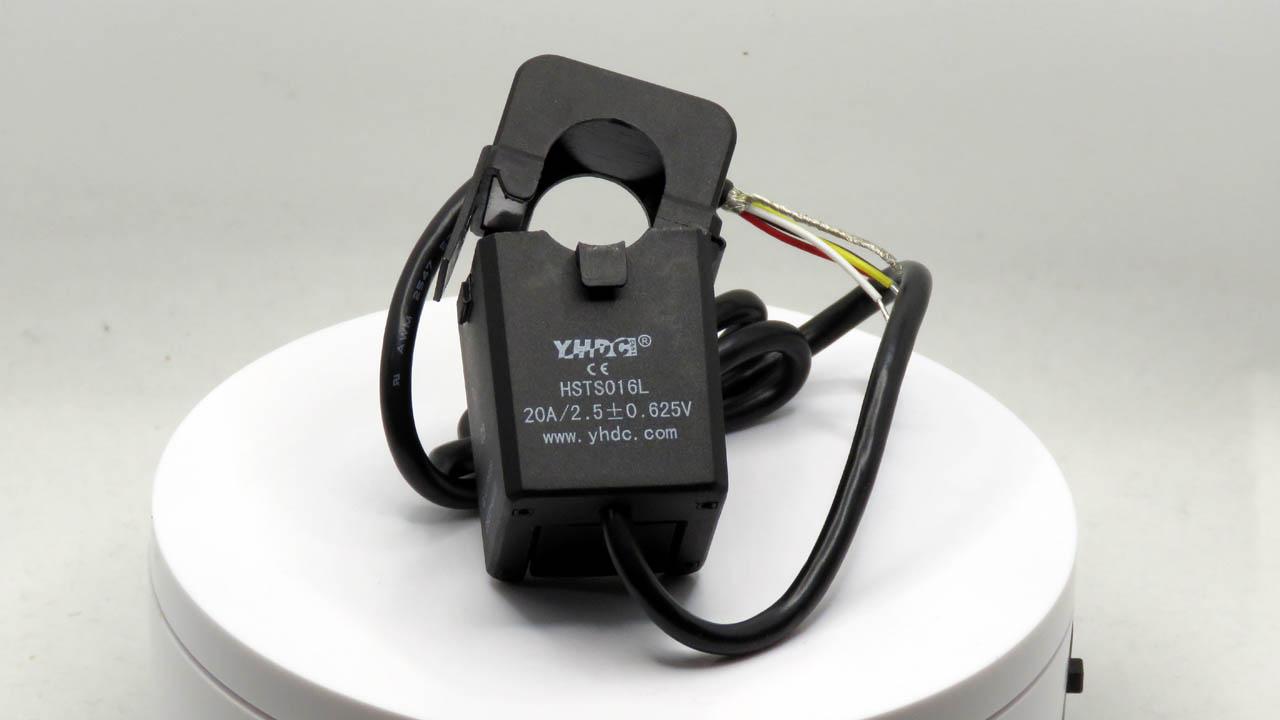

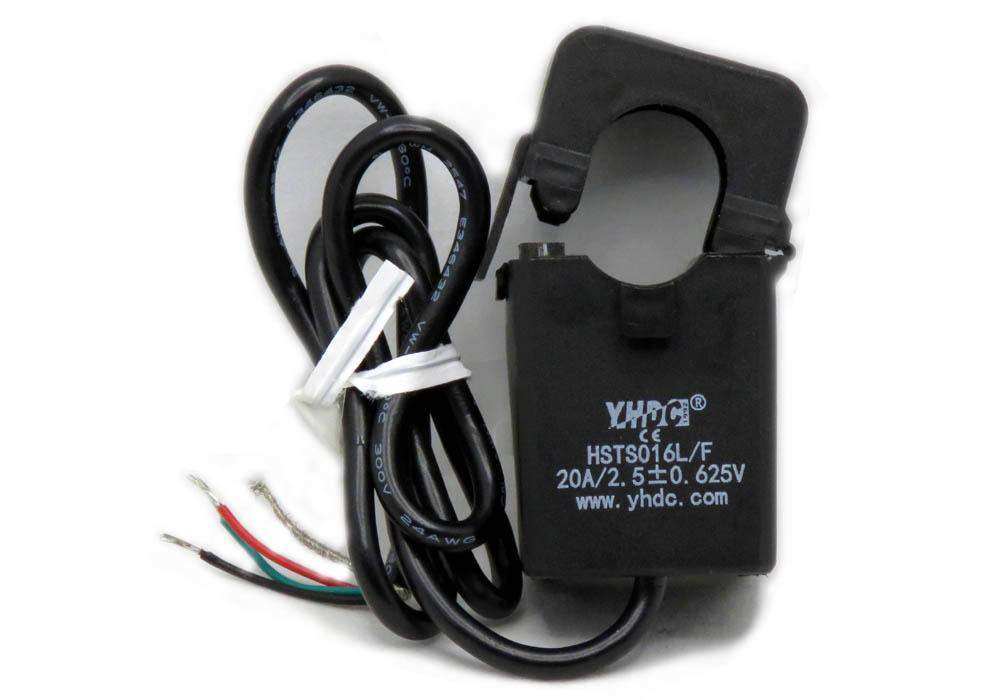

HALL Effect Current Sensor for Current Sensor DAQ HAT for Raspberry Pi

 FEATURES

• Utilizes Hall effect technology for precise and consistent current measurements.
• Wide Input Range: ±20A
• Rated output: 2.5±0.625V, proportional to measured current for seamless system integration.
• UL94-V0 flame-resistant material for enhanced safety.
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +85°C
• DC Bandwidth: Detects DC, AC, and pulse currents.
• High Accuracy: 1% tolerance, 1% linearity
• Power Supply: ±5% +5V/12mA
• Bandwidth: DC to 25KHz
• Response Time: Less than 5µs for rapid current detection.
• Compact Design: Weight: 70g

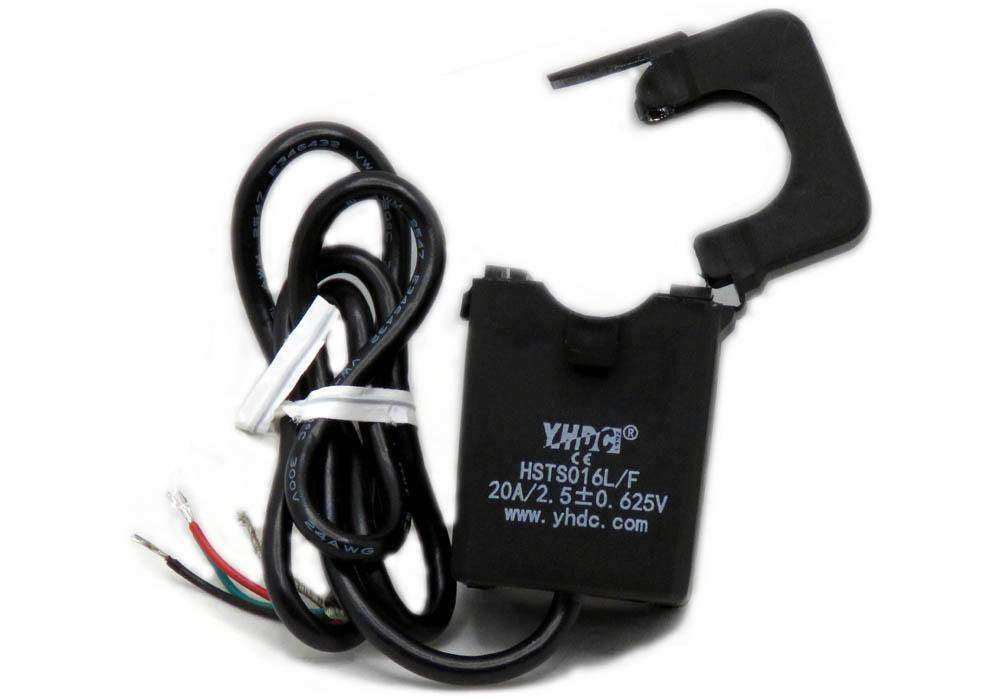

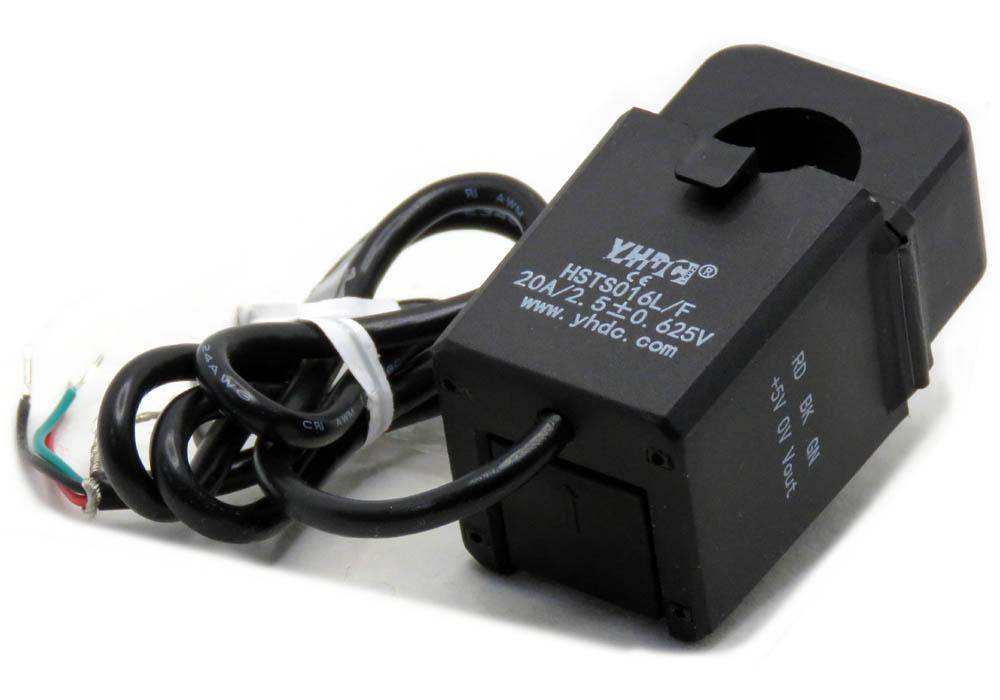

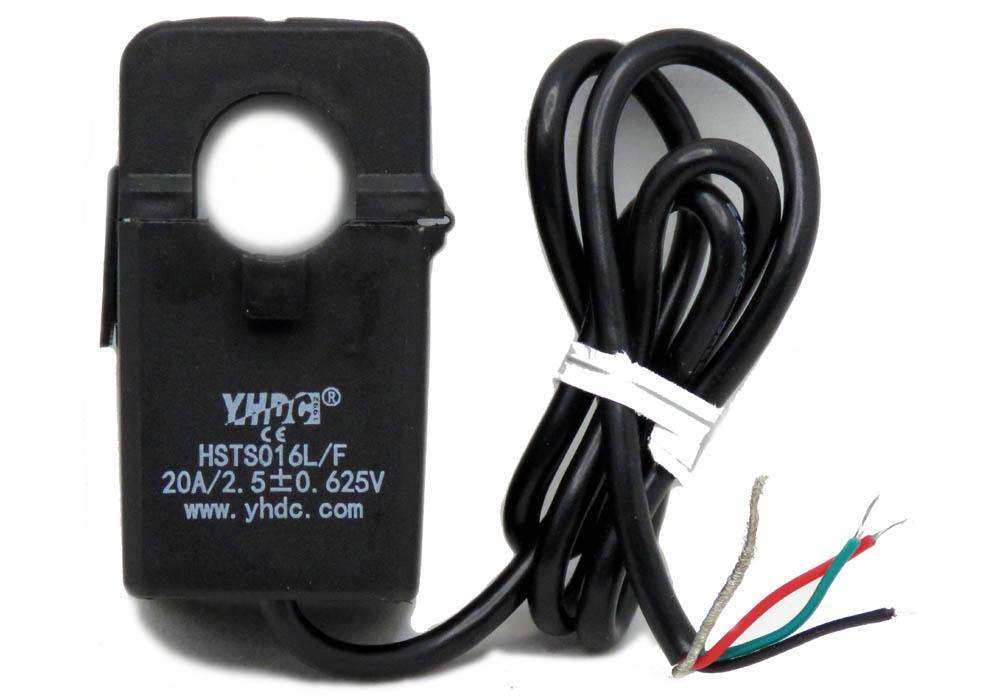

• Open-loop, split-core design for easy hanging installation.

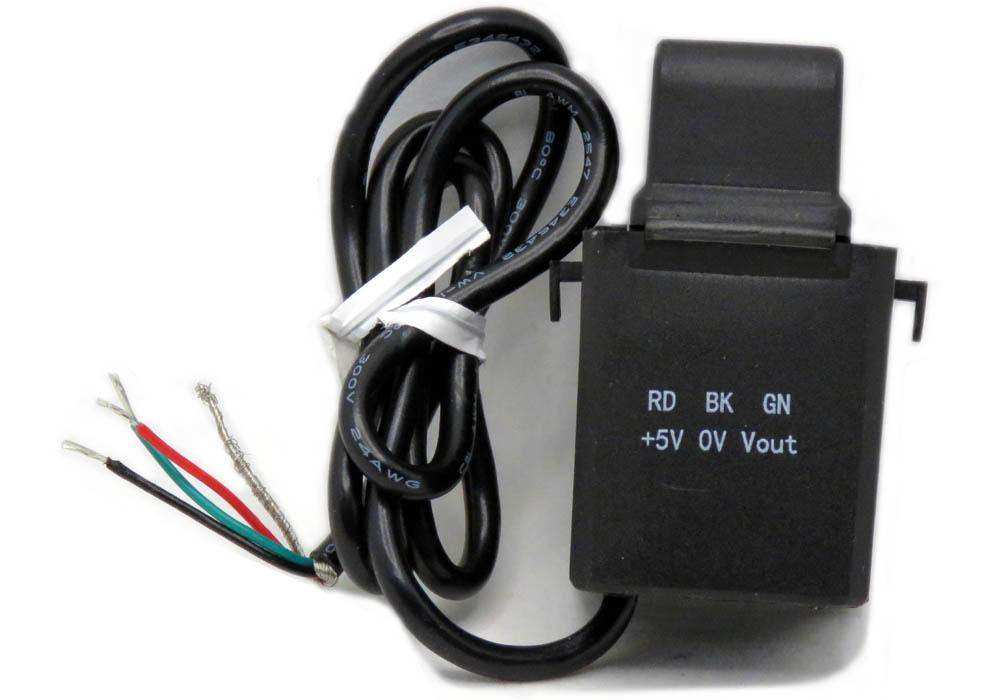

• Three wire connection integrates seamlessly with HALL Current Sensor DAQ HAT for Raspberry Pi

DESCRIPTION

Hall Effect Current Sensors

Open loop Hall effect sensors measure current by directly detecting the magnetic field generated by the current-carrying conductor. A Hall element inside the sensor produces a voltage proportional to the magnetic field strength, which is then processed into an output signal corresponding to the measured current. These sensors are known for their simpler design, lower cost, and lower power consumption but are generally less accurate and slower in response compared to closed-loop versions. They are suitable for applications requiring moderate accuracy and are commonly used in motor control, battery monitoring, and power supply systems.

High-Performance Hall Closed Loop Current Sensor

The HSTS016L is a high-performance closed-loop current sensor utilizing Hall effect technology, designed to deliver accurate and reliable current measurements across a variety of applications.

Wide Input Range

With a rated input range of ±20A this sensor offers versatility for monitoring different current levels in diverse scenarios.

Precise and Consistent Output

The sensor provides a rated output of 2.5±0.625V, delivering a consistent and precise voltage output directly proportional to the measured current. This ensures seamless integration with the HALL Current Sensor DAQ 8-Layer Stackable HAT for Raspberry Pi. Data from up to eight sensors can be acquired with a single. HALL Current Sensor DAQ HAT.

Superior Safety and Temperature Performance

Built with UL94-V0 flame-resistant materials, the HALL Effect Current Sensor HSTS016L meets high safety standards. It operates efficiently in temperatures ranging from -10°C to +70°C and can be stored in conditions from -40°C to +85°C, making it suitable for use in varied environmental conditions.

Advanced Functionalities

• DC Bandwidth: Accurately detects DC, AC, and pulse currents.
• High Accuracy: Ensures a 1% tolerance and exceptional linearity of less than 0.1%.
• Power Requirements: Operates on a ±5% +5V supply voltage, with a current consumption of ±15mA+Im.
• Quick Response Time: Less than 3µs, ensuring rapid current detection.
• Compact and Practical Design: Weighing just 70g, it features an open-loop, split-core design for easy hanging installation.

The HSTS016L HALL Effect Current Sensor is an ideal choice for precise current monitoring and measurement, delivering advanced performance and safety in a compact, easy-to-install design.

DATASHEET

HALL Effect Current Sensor SKU: SM-A-017
