FEATURES
- I/O Accessories Kit for I/O Learning Card for Raspberry Pi
- ON-OFF-ON Switch
- Thermistor
- Photoresistor
- Potentiometer
- RS485 Temperature and Humidity Sensor
- Micromotor
DESCRIPTION

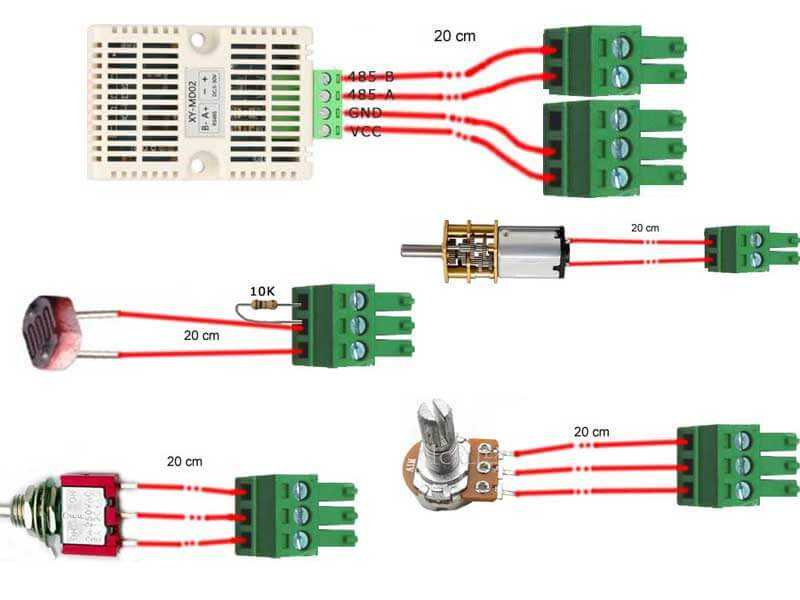

The I/O Accessories Kit contains six cable assemblies which let you experiment with the I/O interfaces of the Learning Kit. The Node-RED tutorial has ample description of each interface, teaching you how to interact with it without writing a single line of code. Command line and Python drivers are also available for each assembly. Each accessory comes pre-wired with a connector plug. Simply plug it into the corresponding port and run the software.
1. ON-OFF-ON SWITCH

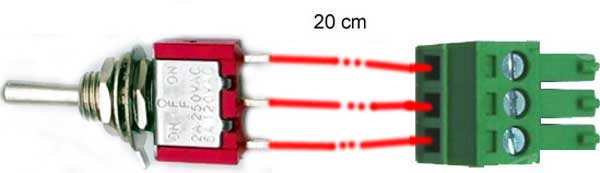

The switch can be used to demonstrate how to read the contact closure inputs.
2. THERMISTOR

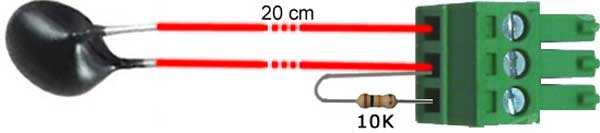

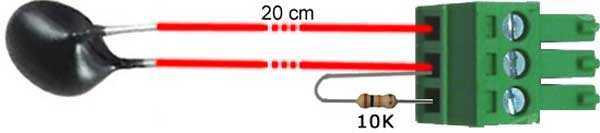

The thermistor can be used to measure ambient temperature using the 0-10V input.
3. PHOTORESISTOR

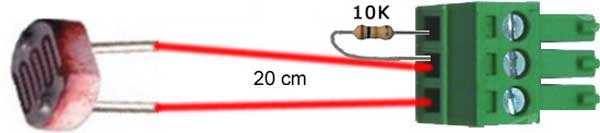

The photoresistor will let you measure light. You can use it to turn lights on at dark, to see when somebody enters a room, or for any application which needs light. It can be read also with the 0-10V input.
4. POTENTIOMETER

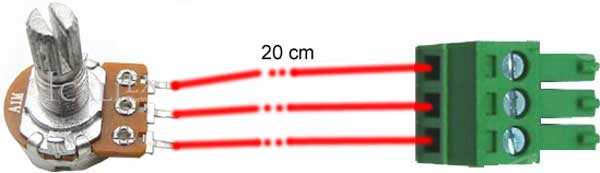

Used also with the 0-10V input, the potentiometer will let you simulate the analog output of a sensor which you can display in Node-RED.
5. RS485 TEMPERATURE AND HUMIDITY SENSOR

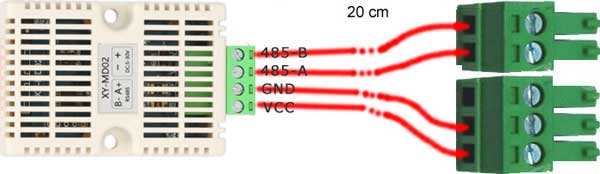

The sensor requires two connectors, one with 2 pins going to the RS485 data port and one with 3 pins going into the 4-20mA input port for power. Use Node-RED to read ambient temperature and humidity.
6. MICROMOTOR

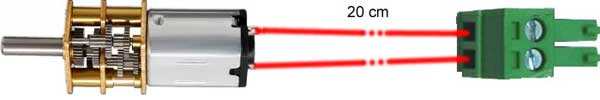

Plug the micromotor into the MOTOR port and use Node-RED to control the speed and direction. Use it with a SERVO connected to the 6 pin header (SERVO not included) and build a small robot driven by Raspberry Pi.
