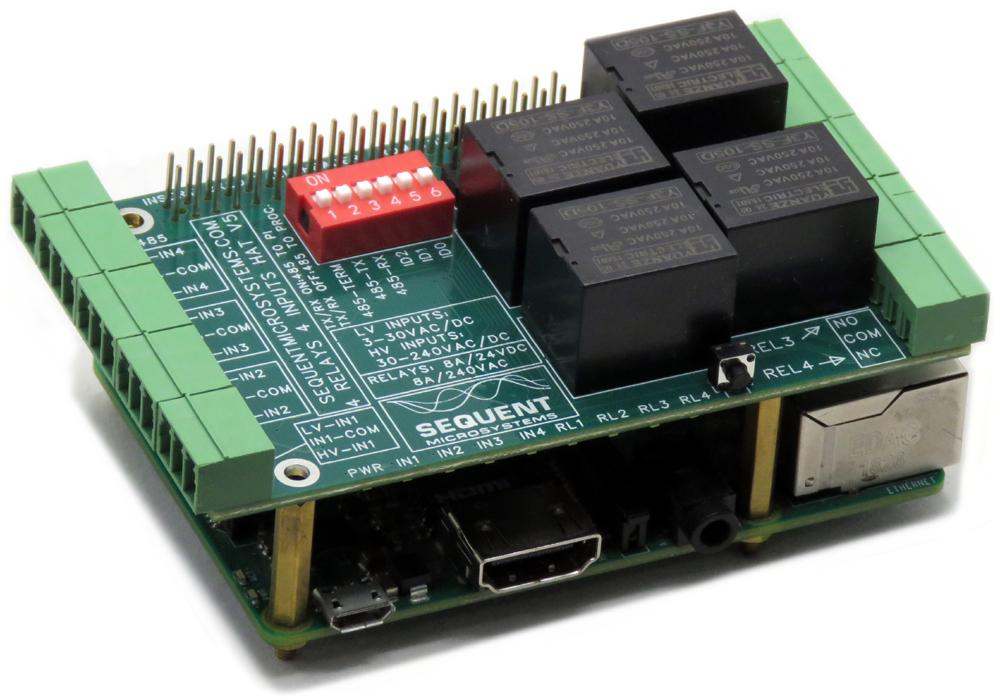

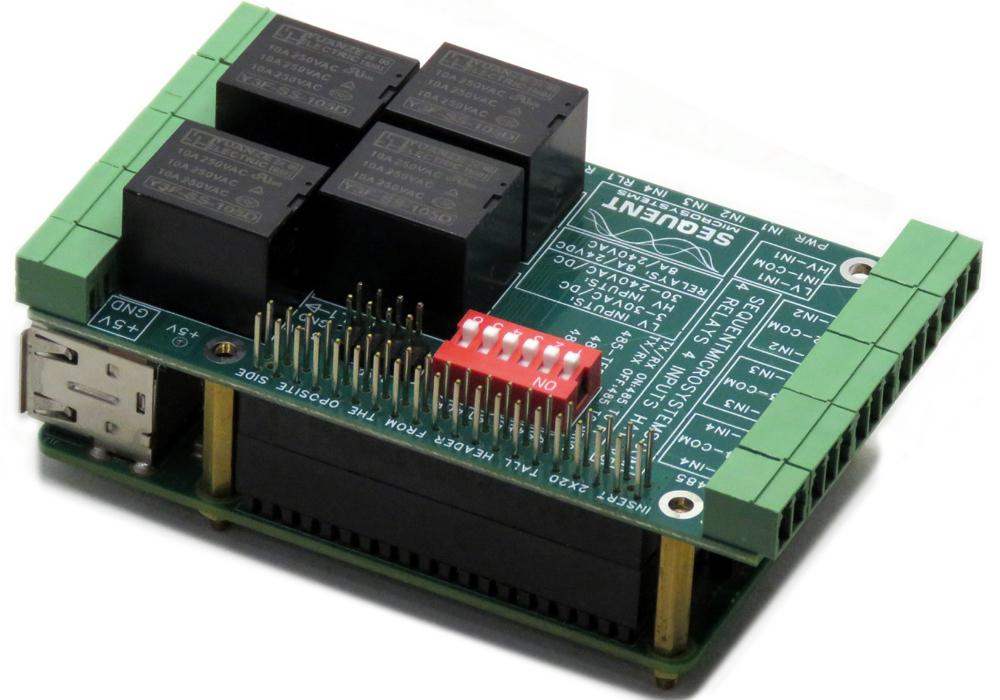

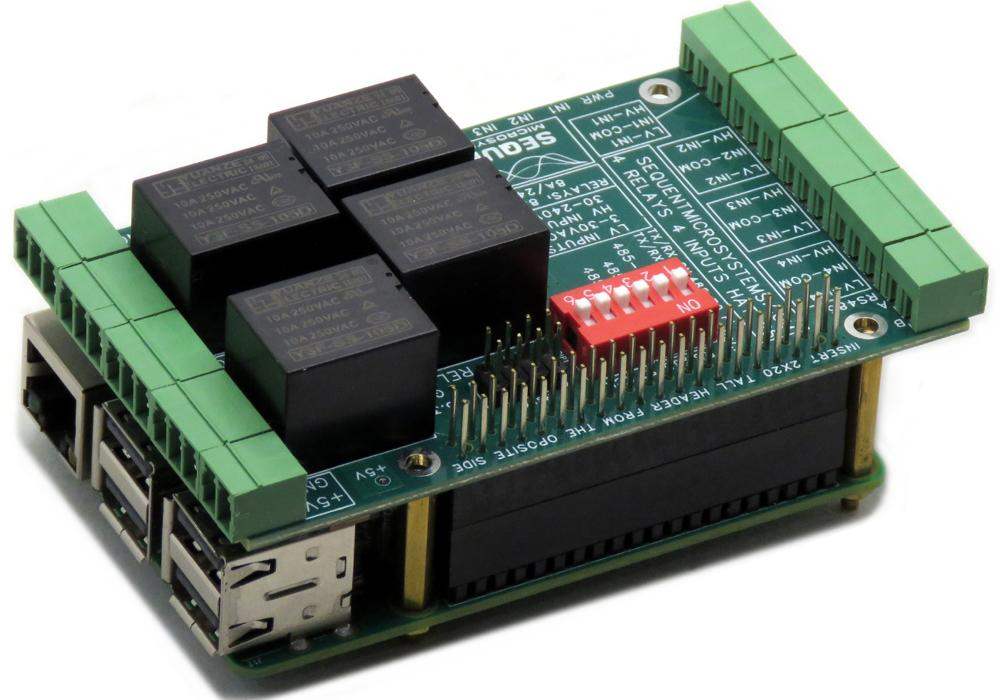

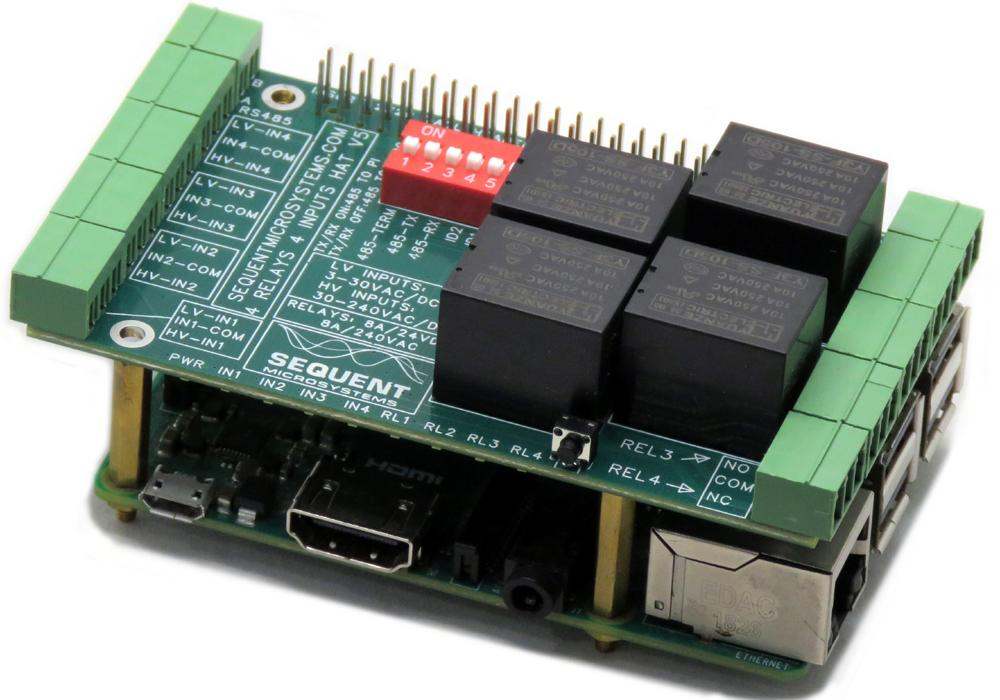

Four Relays four HV Inputs 8-Layer Stackable HAT for Raspberry Pi

Regular price $45.00

FEATURES

Four Relays 4 HV Inputs 8-Layer Stackable HAT for Raspberry Pi
Status LEDs and NO/NC contacts
Switch loads of up to 8A and 240VAC/24VDC
Four high voltage opto-isolated inputs with status LEDs
Separate connectors for low (3V-24V) and high (48-240V) inputs
Universal inputs reading AC or DC signals
Eight layer stackable to 32 relays and 32 inputs
RS485 port
Raspberry Pi reset push button
Pluggable Connectors 30-16 AWG wires
Uses only I2C port (address 0x15..0x0e), all GPIO pins available
Four Relays Raspberry Pi
Command Line
Python Drivers
Node-Red node and examples
OpenPLC module
Arduino Library

NEW FEATURES IN VERSION 4

The 4.0 release of the card replaced the I/O expander with a local processor. This enhancement allowed us to add several new features:

Independent RS485 (no Raspberry Pi needed)
MODBUS protocol allows the card to be controlled from any PLC
Transition counters to 4kHz on all inputs
Input counters with cumulative or PPS (pulse per second) reading up to 4kHz
2 x Quadrature encoder inputs reading up to 4000 PPS
PWM inputs on each channel, reading both the fill factor and the frequency

DESCRIPTION

Four Heavy Duty Relays plus Four High Voltage Inputs for Raspberry Pi

Drive 8A/240VAC loads and read 3V to 240V, AC or DC, opto-isolated inputs for all your Home or Industrial Automation Projects

Perfect add-on to your project when you have to control large number of heavy-duty AC loads and/or you have to read wide range inputs. Stackable to 8 layers, the card can add up to 32 relays to each Raspberry Pi in a very compact form factor. In addition, you can read up to 32 opto-isolated inputs.

Pluggable connectors make the 4-RELAYS card easy to use when multiple cards are stacked up. All relays have Normal Open and Normal Close contacts and can switch up to 8A/240VAC.

The optically isolated universal inputs can read AC or DC signals from 3V to 48V. The input connectors have a low voltage port which can read signals between 3V and 24V, and a high voltage port which can read signals between 24V and 48V.

COMPATIBILITY

The card is compatible with all Raspberry Pi versions from Zero to 5. All stacked cards share the I2C bus using only two of the Raspberry Pi’s GPIO pins to manage all eight cards. This feature leaves the remaining 24 GPIOs available for the user.

POWER REQUIREMENTS

The card needs 5V to operate and can be powered from Raspberry Pi or from it's own 2 pin pluggable connector. The relay coils are also powered from the 5V. The card draws 10mA with all relays off. Each relay needs about 80 mA to turn on. If power is applied to the 2 pin pluggable connector, no other power supply is needed for the Raspberry Pi.

STACKING MULTIPLE CARDS

Up to eight cards can be stacked on your Raspberry Pi. Each card is identified by jumpers you install to indicate the level in the stack. Cards can be installed in any order. A three position jumper selects the stack level.

For your convenience, two jumpers are provided with each card.

REVERSE POWER SUPPLY PROTECTION

The board is protected to accidental reverse power supply with a 5.8A, 39 mOhm MOSFET which breaks the ground line if reverse power is applied.

RESET PUSHBUTTON

Shutting down the Raspberry Pi by turning off the power can result in SD Card failure. To prevent this, a shutdown command needs to be used before power cut-off. But this requires a monitor, keyboard and mouse connected to the Pi.

A momentary on push button installed at the edge of the board provides a convenient way to shut down the Raspberry Pi. The button is read by the local processor, which can be programmed to signal the Raspberry Pi by setting low pin 37 of the Raspberry Pi GPIO connector (GPIO26). You can also read the status of the pushbutton from the I2C interface. You need to write a script which monitors this pin, and if pressed for more than a desired time, issues the shut-down command.

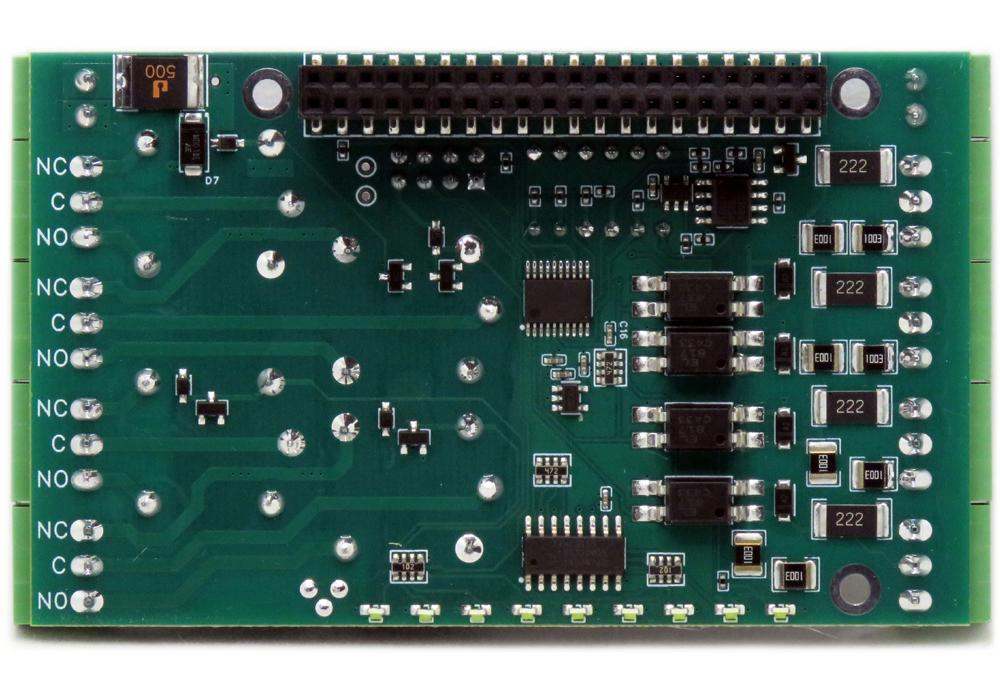

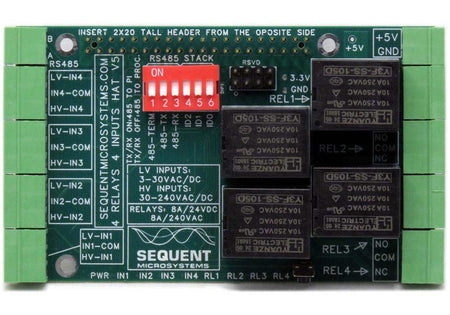

CARD LAYOUT

ELECTRICAL SPECIFICATIONS

Power Supply: 5V/8A pluggable connector with reverse polarity protection
On board resettable fuse: 3A
Opto-isolated Digital Inputs:
- Input Forward Current: Typical 5 mA, maximum 50 mA
- Low Voltage Input Series Resistor: 2.2K
- High Voltage Input Series Resistor: 120K
- Isolation Resistance: Minimum 10¹² Ω
Relays: NO/NC contacts, 8A/240 VAC-24 VDC

MECHANICAL SPECIFICATIONS

RELAY SELF TEST

The card can be tested before installation by running a simple command from the command line. The card will cycle each relay on and off at 0.5 seconds interval. The clacking noise of the relays and the lighting of the LEDs will assure that all relays are functioning.

RS485/MODBUS port

A standard RS485 transceiver permits the Raspberry Pi to communicate using any protocol including MODBUS, PROFIBUS, camera PTZ control, etc. The transceiver can be driven either from the Raspberry Pi serial port, or directly from the local processor. Install the jumpers 485-TX and 485-RX on connector J3 to drive the port from Raspberry Pi. Install the terminator jumper 485-TERM if the card is last on the RS485 chain.

EXTENDED FUNCTIONS OF THE INPUT PORTS

Transition counters to 4kHz on all inputs
Input counters with cumulative or PPS (pulse per second) reading up to 4kHz
2 x Quadrature encoder inputs reading up to 4000 PPS
PWM inputs on each channel, reading both the fill factor and the frequency
1% resolution on PWM inputs up to 100Hz, 5% resolution up to 500Hz.

DOWNLOADS

FOUR RELAYS FOUR INPUTS DOWNLOADS

SOFTWARE

SOFTWARE INTERFACES

You can write your own application using the Command Line or Python Libraries provided. Usage example for the python library can be found in tests.py file on repository. No programming is required if you use the Node-Red nodes we supply. You can drag-and-drop the functional blocks to design your application. Examples are also provided.

ACCESSORIES

DIN-RAIL MOUNTING

The card can be installed parallel on a DIN-Rail using the DIN-Rail Kit Type 1, or perpendicular using the DIN-Rail Kit Type 2.

YOUR KIT

When you purchase the Four Relays Card you will receive the following items:

1. 4-RELAYS add-on HAT for Raspberry Pi

2. Mounting hardware

Four M2.5x18mm male-female brass standoffs
Four M2.5x5mm brass screws
Four M2.5 brass nuts

3. Two jumpers

4. Mating connector plugs

QUICK START

Plug your 4-RELAYS 4-INPUTS card on top of your Raspberry Pi and power up the system.
Enable I2C communication on Raspberry Pi using raspi-config.
Install the card software from github.com:

~$ git clone https://github.com/SequentMicrosystems/4rel4in-rpi.git
~$ cd /home/pi/4rel4in-rpi
~/4rel4in-rpi$ sudo make install
~/4rel4in-rpi$ 4rel4in

The program will respond with a list of available commands.
